50uhf data collector -idata data collector

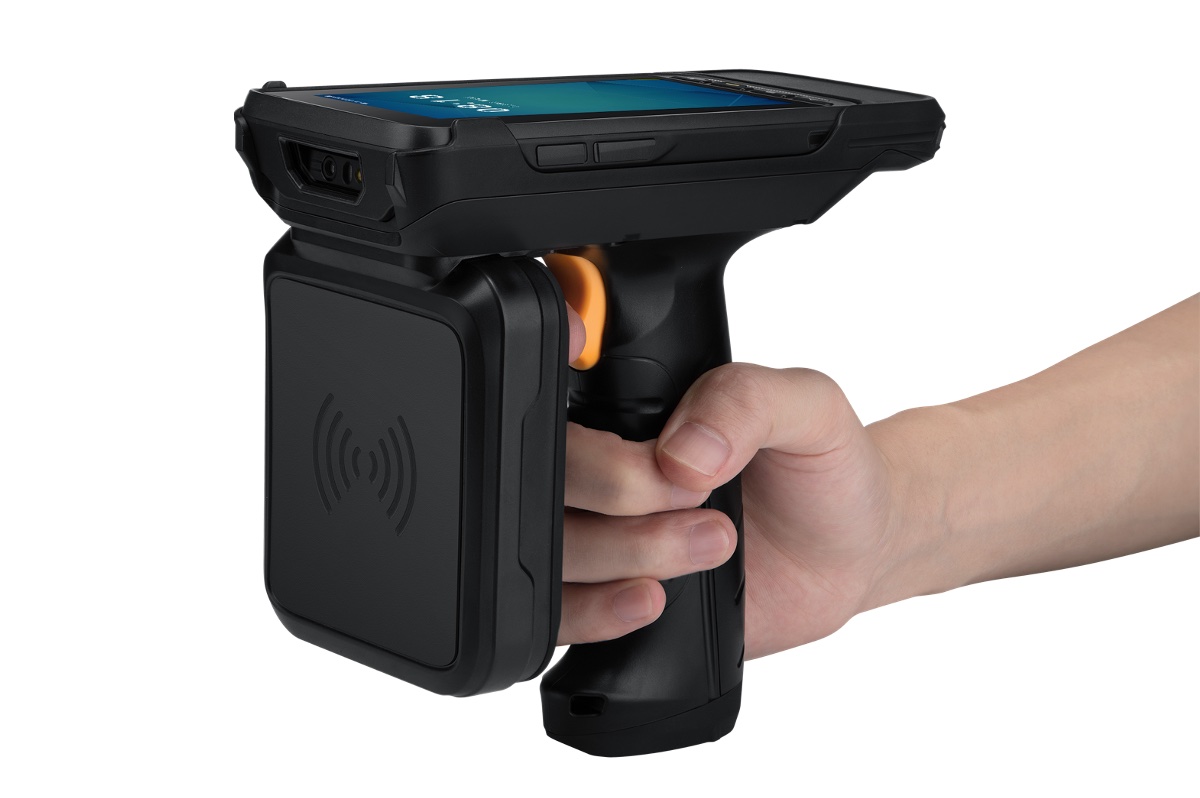

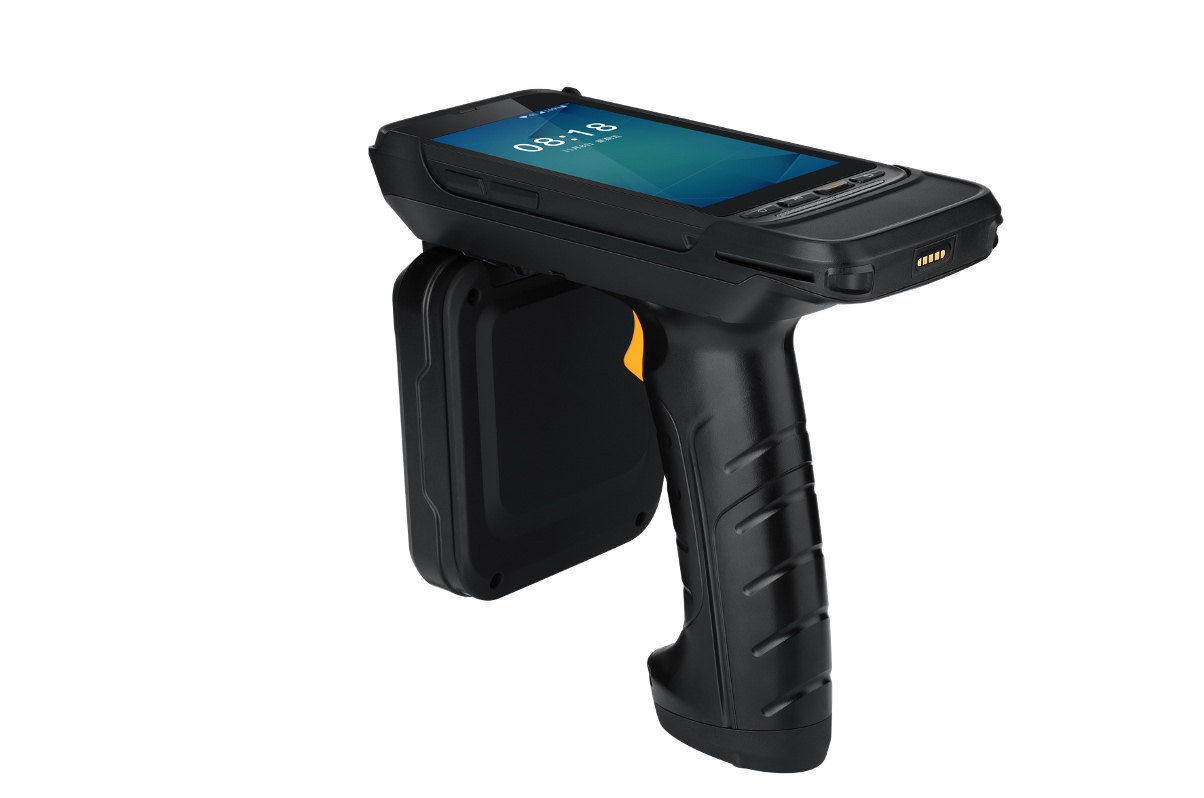

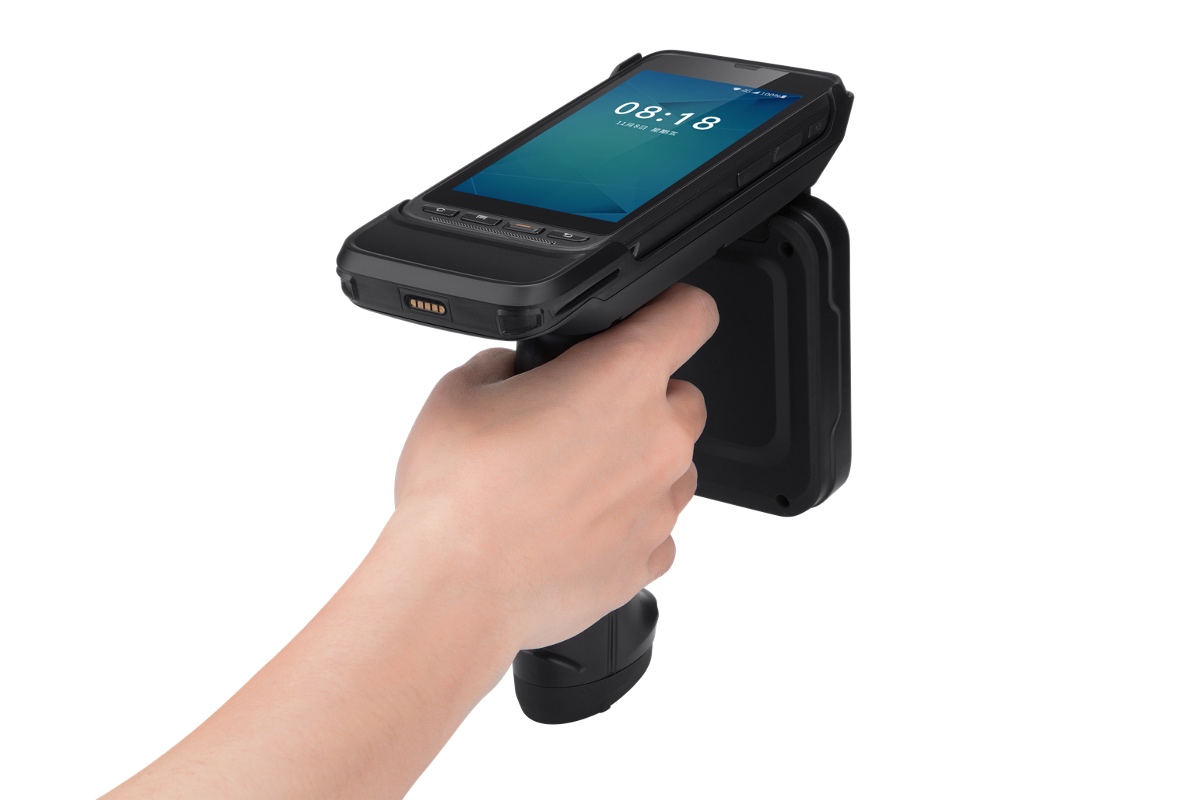

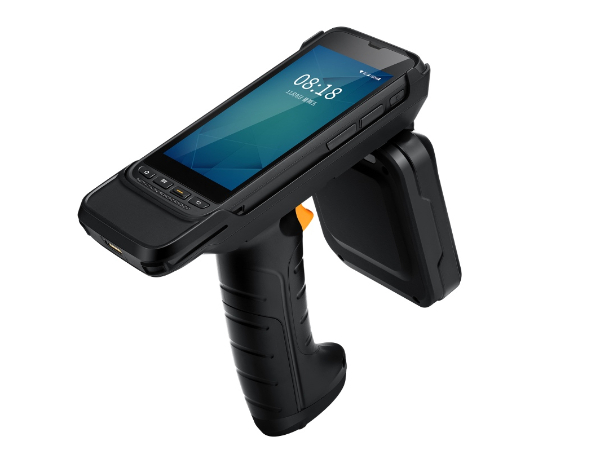

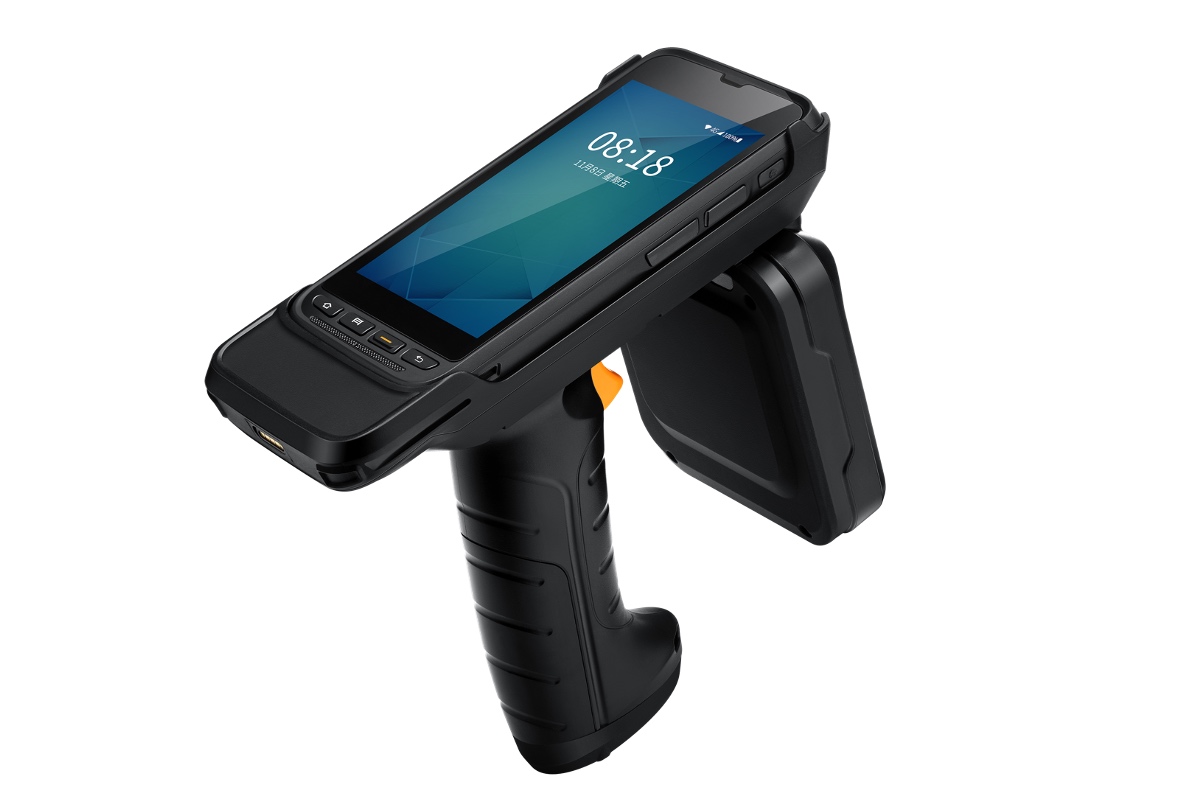

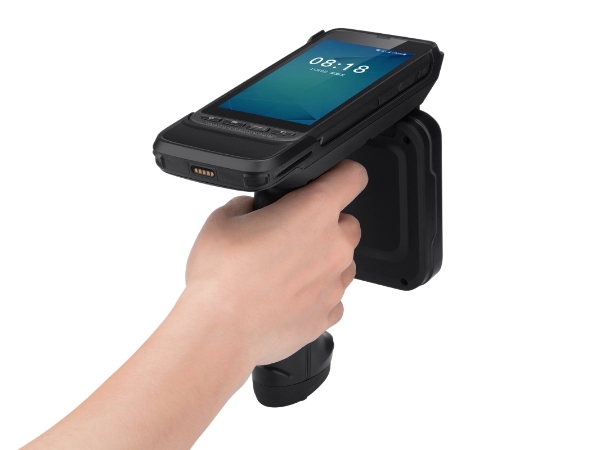

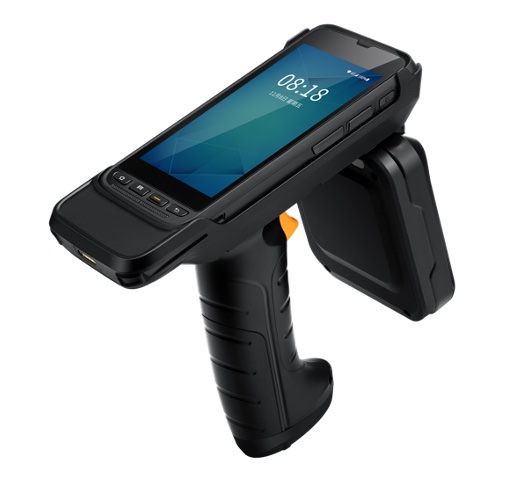

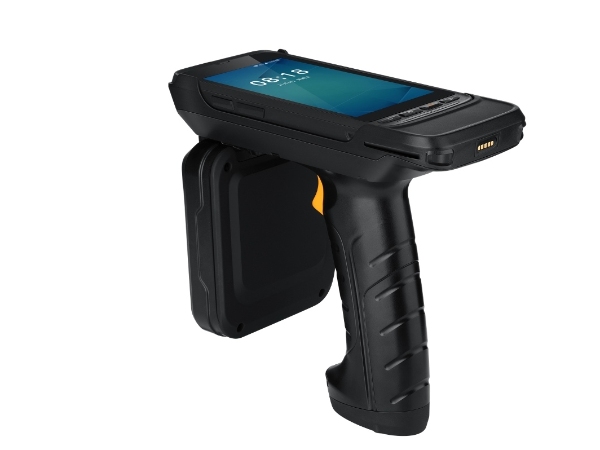

Idata 50UHF RFID collector

Brand:China Gain strengthIdata
System:Android 9.0
Read range:＞ 4Meter (m)15Feet)
Advantages and features:adopt4.7Inch large screen, can show more content

Support China Unicom, mobile and telecommunications4G

Moderate price

inquiry

Product details

Product characteristics / characteristic

Large screen4.7Inch industrial capacitive screen
usable4GnetworkWide area networks transmit data
MTKplatformocta-core 2.0GHz
Use one machine for two purposes supportRFIDLabel and barcode reading

Choose us · IdataBrand authorized agent Devote oneself toRFIDTechnical solutions project implementation

Enterprise strength
• Listed enterprises strong endorsement,Stock Code:900292
• 12Deep annual ploughingRFIDTechnology, Founder20+Years of industry experience
• Win for many yearsidataBrand agency qualification
• Cumulative service1000+Customers, many for the world brand enterprises

Technical capability
• Software development team throughCMMI-3System certification
• Idata RFIDSolution provider
• Provide barcode&RFIDTechnical project overall installation, deployment, operation and maintenance
• Independent innovation research and development, obtained a number of soft&New patent certification

T2-UHFequipment-Typical usage scenario

manufacturing
Factory warehouse
Logistics transportation
Retail inventory
Asset management
Medical care

See here is there any doubt? Click this button to communicate with customer service directly

Multiple upgrade configurations Hardcore quality is consistent

Using Mediatek chip

Under the premise of low price, better speed is achieved.

• eightcore
• 2.0 GHzprocessor

Large screen for more information

Industrial capacitive screen, the screen is large, so that employees can easily see the screen content indoors or outdoors.

4.7inches
Industrial capacitive panel1280*720
Rear camera800wan

Flexible acquisition of two-dimensional code reading head

On-site presenceRFIDLabels also have ordinary bar code labels, which can be used for data acquisition by two-dimensional code reading heads.

• Range scanning Support one dimension/2D barcode, scanning accuracy is greater than or equal to3.33mil

Wide area networks are available4GCommunication technology

In places where there is no wireless Internet, you can go straight through4GTransmit the signal. In the logistics warehouse and other wireless signal quality is relatively poor environment, can also be used as a supplementary data transmission. Make data transfer more stable.

• Support China Mobile, China Unicom, China Telecom4GThe frequency band.
• WiFi support802.11AC mode

Double cell

controller5200mAhbattery+ 3600mAhBuilt-in battery. Easily meet the demands of 24/7 work.

Dual battery for host and handle
3.70VLithium battery

Adopt Android9.0System

Regular Android system, good compatibility. Use Android version, you can enjoy convenient development platform code.

• Development language:Java
• Development tools:Android SDK + JDK + Eclipse

Main configuration parameters

Equipment type	Idata 50UHF
Operating system	Android 9.0
CPU	octa-core 2.0 GHz
Internal memory	2 GB RAM / 16 GB Flash memory
Screen	4.7inches(1280x720) Industrial capacitive screen Support glove mode
Keyboard	Triple bond
RFIDStandard	ISO 18000 - 6B/6C/6D (Customized)

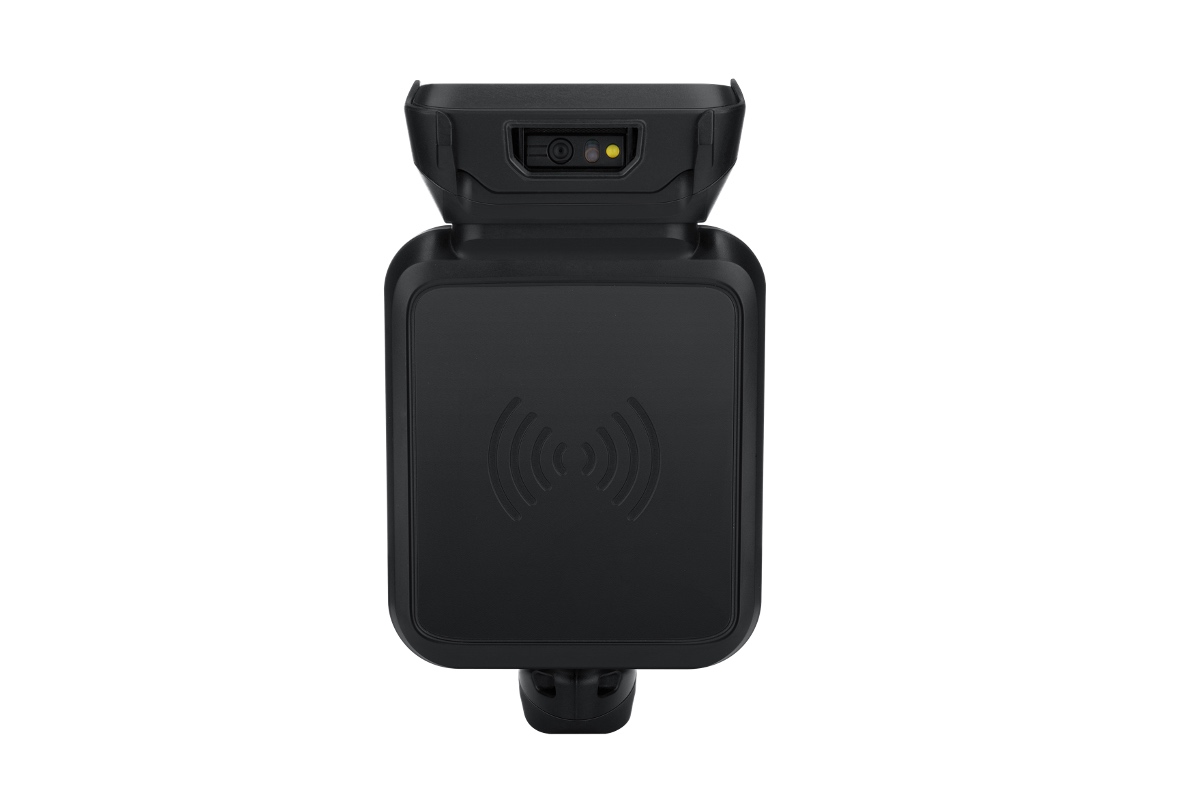

RFIDantenna	Circularly polarized antenna, 200+tag/Seconds,4dBi

See more

Wide area network	2G:B2/B3/B5/B8 3G:WCDMA:B1/B2/B5/B8,CDMA BC0,TD-SCDMA:B34/B39 4G:FDD-LTE:B1/B3/B7/B8/B20,TDD-LTE:B34/B38/B39/B40/B41
Wide area network data service	GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA TD-SCDMA/TDD-LTE/FDD-LTE
Bluetooth	Bluetooth 5.0
Wireless network	IEEE 802.11 a/b/g/n/ac/r
Class of protection	IP65
Operating temperature	-20°to 60°
weight	710g
battery	Host machine3600 mAh, controller 5200mAh battery
Expansion slot	MicroSD Sockets
Keep under warranty	A year
