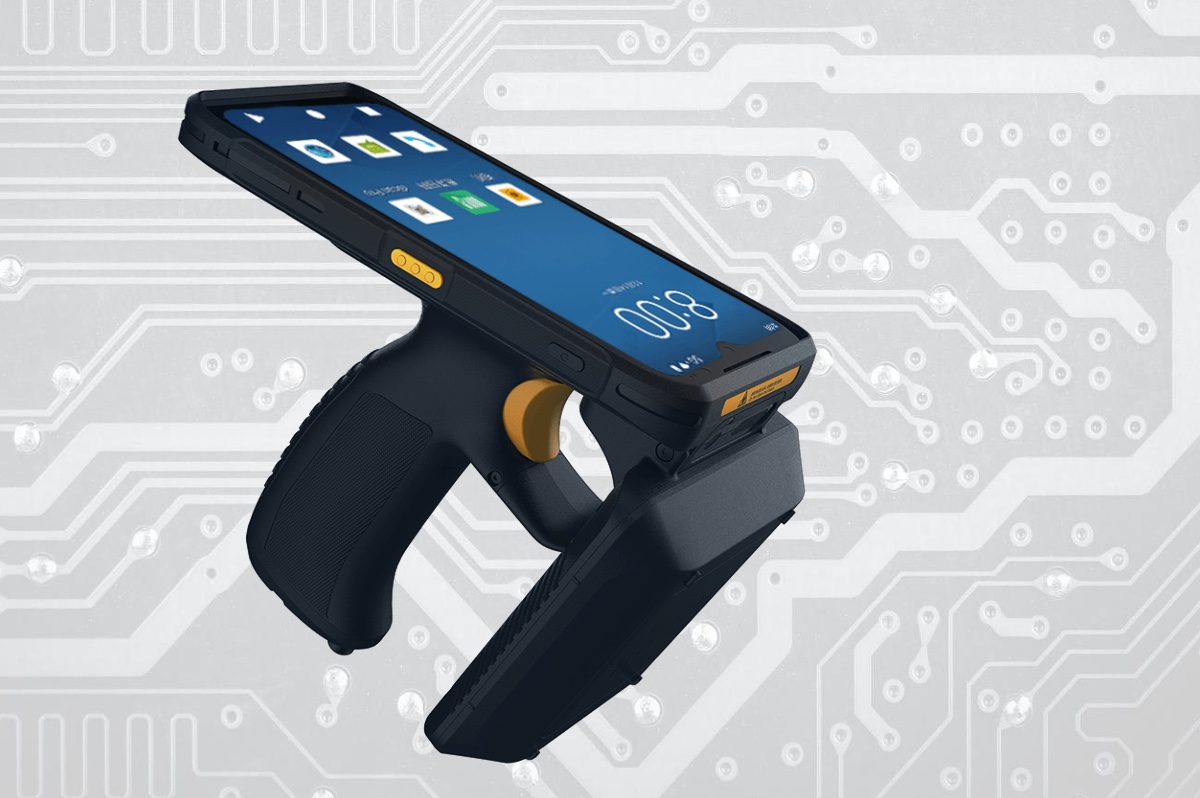

Idata T2UHF RFID collector

Idata T2UHF RFID collector

Idata T2UHF RFID collector

Idata T2UHF RFID collector

Idata T2UHF RFID collector

Brand:China Gain strengthIdata
System:Android 11.0
Read range:> 6Meter (m)20Feet)
Advantages and features:adopt6.2Inch large screen, can show more content
                  Moderate price
  • Product details
Product characteristics / characteristic
  • Large screen6.21Inch industrial capacitive screen
  • usable4GnetworkWide area networks transmit data
  • More memory4GInternal memory + 64GFlash memory
  • Use one machine for two purposes supportRFIDLabel and barcode reading

Choose us · IdataBrand authorized agent Devote oneself toRFIDTechnical solutions project implementation

  • Enterprise strength
  • • Listed enterprises strong endorsement,Stock Code:900292
  • • 12Deep annual ploughingRFIDTechnology, Founder20+Years of industry experience
  • • Win for many yearsidataBrand agency qualification
  • • Cumulative service1000+Customers, many for the world brand enterprises
  • Technical capability
  • • Software development team throughCMMI-3System certification
  • • Idata RFIDSolution provider
  • • Provide barcode&RFIDTechnical project overall installation, deployment, operation and maintenance
  • • Independent innovation research and development, obtained a number of soft&New patent certification

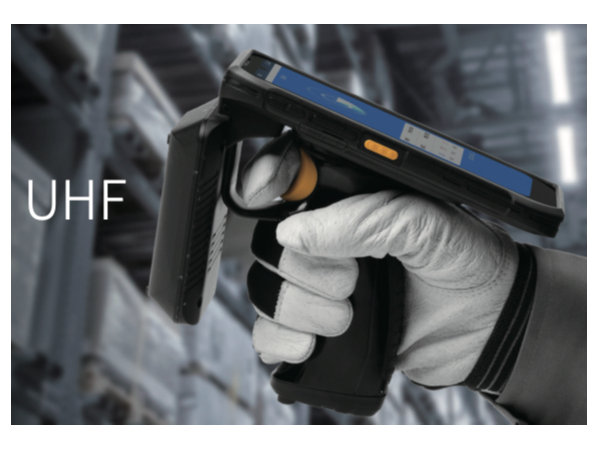

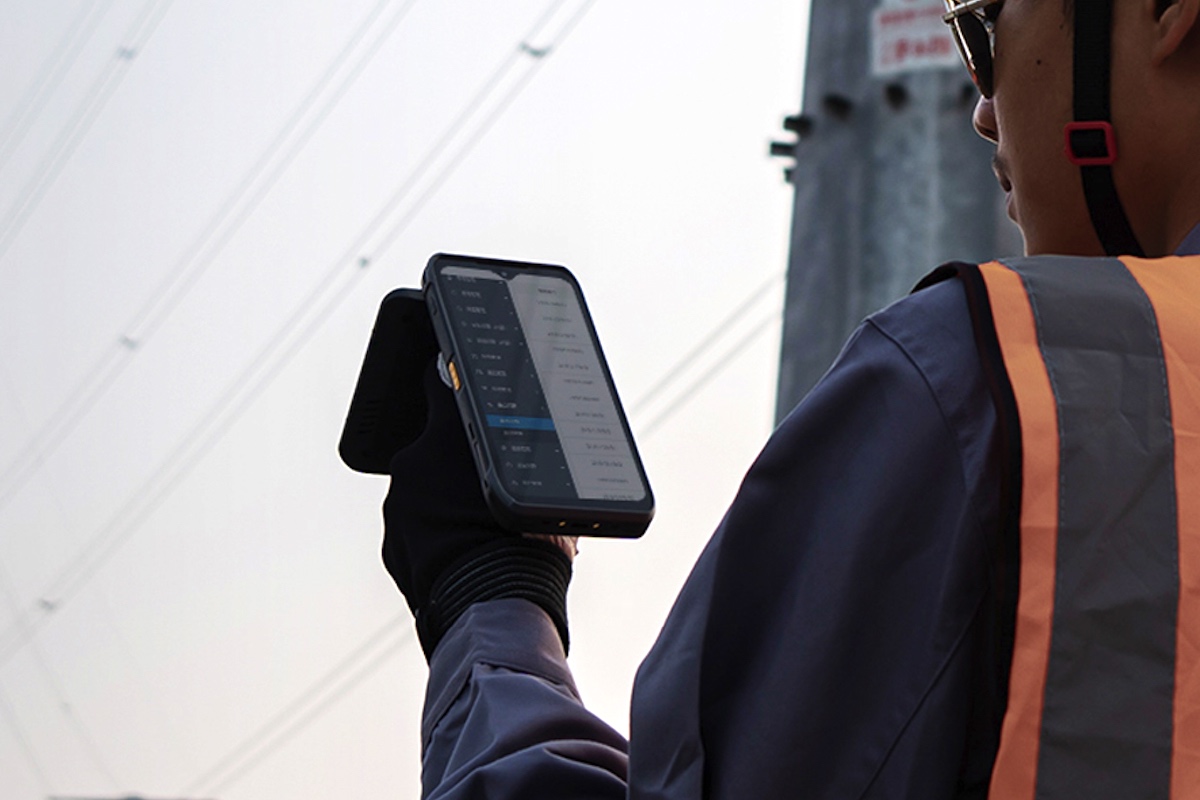

T2-UHFequipment-Typical usage scenario

See here is there any doubt? Click this button to communicate with customer service directly

Multiple upgrade configurations Hardcore quality is consistent

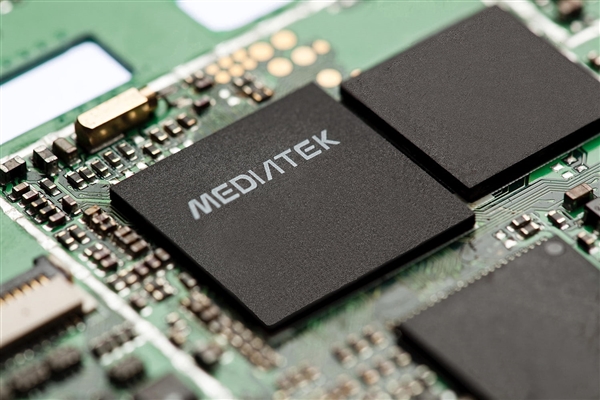

MTK cpu

Using Mediatek chip

Under the premise of low price, better speed is achieved.

  • • eightcore
  • •  2.0 GHzprocessor

Large screen for more information

Industrial water drop screen, the screen fills the body, so that employees can easily see the screen content indoors or outdoorsRFIDAntenna formation15Degree Angle, scan screen operation can be viewed.

  • 6.21Inch full drop screen
  • Industrial capacitive panel1520*720
  • Overhead camera1600wan

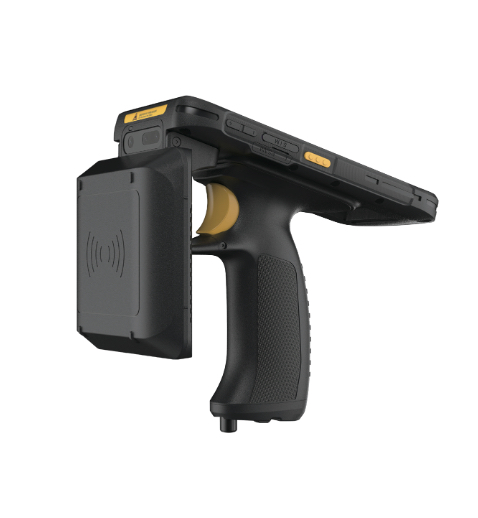

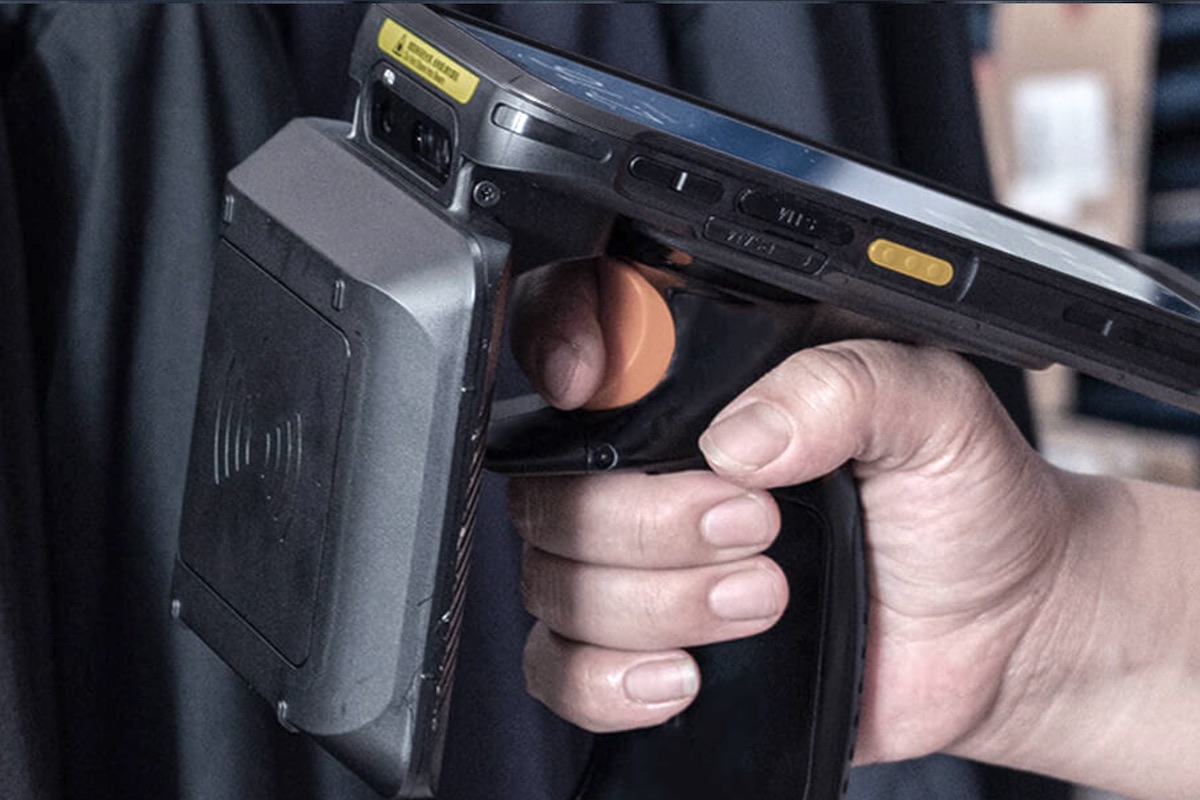

T2uhfReading head

Flexible acquisition of two-dimensional code reading head

On-site presenceRFIDLabels also have ordinary bar code labels, which can be used for data acquisition by two-dimensional code reading heads.

  • Range scanning  Support one dimension/2D barcode, scanning accuracy is greater than or equal to3.33mil

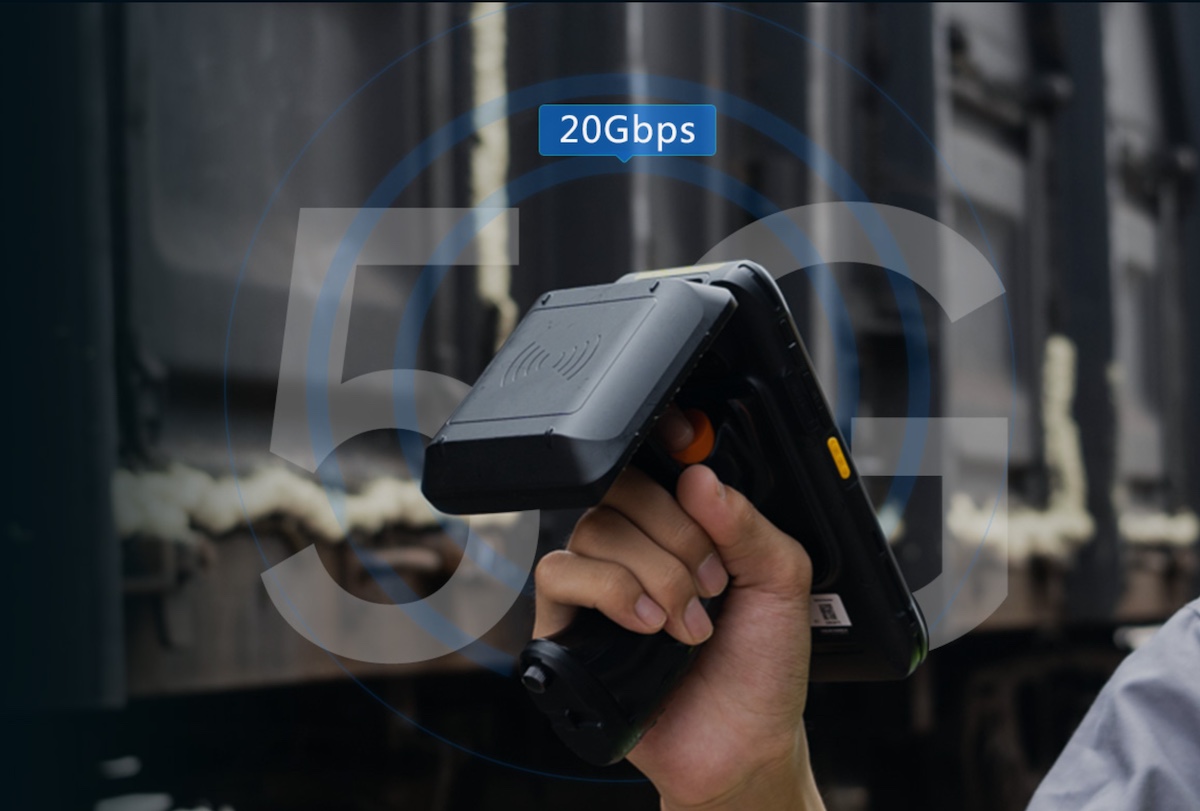

Wide area networks are available4GCommunication technology

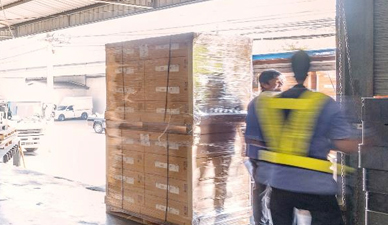

In places where there is no wireless Internet, you can go straight through4GTransmit the signal. In the logistics warehouse and other wireless signal quality is relatively poor environment, can also be used as a supplementary data transmission. Make data transfer more stable.

  • • Support China Mobile, China Unicom, China Telecom4GThe frequency band.
  • • WiFi support802.11AC mode

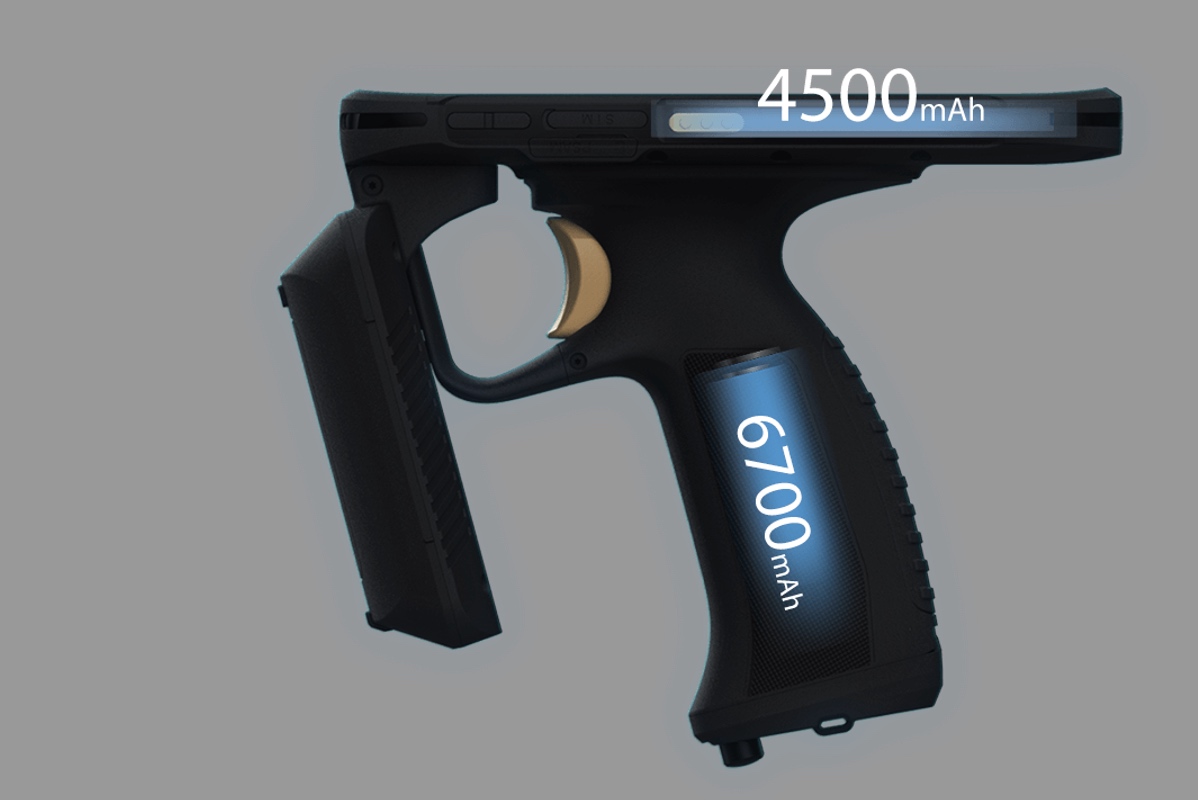

The battery can be replaced without shutting it down

controller6700mAhReplaceable battery+ 4500mAhBuilt-in battery. Easily meet the demands of 24/7 work.

  • It can be replaced without shutdown
  • 3.65VLithium battery
  • Dual battery for host and handle

Adopt Android11.0System

Regular Android system, good compatibility. Use Android version, you can enjoy convenient development platform code.

  • • Development language:Java
  • • Development tools:Eclipse/ Android studio

Main configuration parameters

Equipment type Idata T2UHF
Operating system Android 11.0
CPU octa-core 2.0 GHz
Internal memory 4 GB RAM / 64 GB Flash memory
Screen 6.21inches(1520x720) Industrial capacitive screen
Supports wet hand operation/Gesture operation/multi-touch/Glove mode
Keyboard There is no
RFIDStandard EPC Class 1 Gen 2 ;ISO- 18000 - 6C
RFIDantenna Circularly polarized antenna, 700+tag/Seconds,8dBmto33dBm
See more
Wide area network



Wide area network data service GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA
Bluetooth Bluetooth 5.0
Wireless network IEEE 802.11  a/b/g/n/ac/d/e/h/i/j/k/r/v/w
Class of protection IP67
Operating temperature -20°to 60°
weight 680g
battery Host machine4500 mAh, controller 6700mAh battery
Expansion slot MicroSD Slot, support 1TB
Keep under warranty A year
