Zebra MC319Z RFID collector

Zebra MC319Z RFID collector

Zebra MC319Z RFID collector

Zebra MC319Z RFID collector

Zebra MC319Z RFID collector

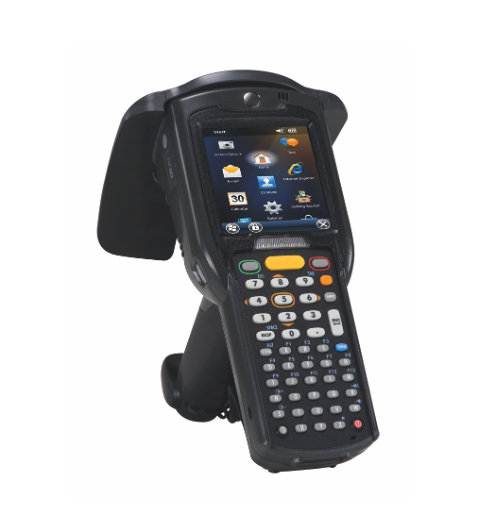

Brand:American zebra ZEBRA
System:MicrosoftWindows Embedded Handheld 6.5.3
Read range:> 6Meter (m)20Feet)
Advantages and features:Linear polarizationRFIDThe antenna has a longer reading range
                   On salewindows System RFIDIn hand
  • Product details
Product characteristics / characteristic
  • Microsoft operating systemWindows MobileOperating system
  • RFIDRead distanceDual-wire polarized antenna
  • Integrated fuselage design Durable, can withstand multiple times1.2Meter drop
  • Use one machine for two purposes supportRFIDLabel and barcode reading

Choose us · American Zebra brand authorized agent Devote oneself toRFIDTechnical solutions project implementation

  • Enterprise strength
  • • Listed enterprises strong endorsement,Stock Code:900292
  • • 12Deep annual ploughingRFIDTechnology, Founder20+Years of industry experience
  • • 12Win consecutivelyZebraBrand agency qualification
  • • Cumulative service1000+Customers, many for the world brand enterprises
  • Technical capability
  • • Software development team throughCMMI-3System certification
  • • Zebra RFIDSolution provider
  • • Provide barcode&RFIDTechnical project overall installation, deployment, operation and maintenance
  • • Independent innovation research and development, obtained a number of soft&New patent certification

MC319Zequipment-Typical usage scenario

See here is there any doubt? Click this button to communicate with customer service directly

Characteristic configuration Hardcore quality is consistent


It needs MicrosoftRFIDIn hand?

Yes,MC319ZFor those still on saleWindowsSystem handheld. Based on.netProgrammers of the development platform can easily get started.

  • • Windows Embedded HandheldThe system, as we call itWindows MobileSystem
319ZDouble antenna

Linear polarizationRFIDantenna

Two linearly polarized antennas are used to solve the shortage of linearly polarized antennas at different angles, and the effect of circular polarized antennas can be achieved

  • sensitivity
  • speed
  • distance

Flexible acquisition of two-dimensional code reading head

On-site presenceRFIDLabels also have ordinary bar code labels, which can be used for data acquisition by two-dimensional code reading heads. If you want to read many high shelvesRFIDThe information of a box of goods in the label can also be accurately read by the remote two-dimensional code reading head of the device.

  • Two dimensional spacing bar code reader
A new generationWI-FItechnology


Compatible wireless card chip, suitable for each major wirelessAPBrand, guarantee fast connection. Fast and stable data transmission to the background system will not be lost halfway.

  • • IEEE 802.11 a/b/g

Durable, high level of protection

Designed for 24/7 enterprise applications. Reliable performance even withstands the inevitable drops and splatters. Good waterproof and dustproof performance

  • 1.2meter/4Foot drop
  • 1.64feet/0.5Meter roll
  • IP54Class of protection
Bluetooth Smart connection print directly

Bluetooth Smart connection print directly

What if you need to print after field data collection? Can usePDAThe Bluetooth-connected printer prints directly.

  • • Bluetooth Standard interface
Touch screen input+Physical keyboard input

Touch screen input+Physical keyboard input

Why have a touch screen, but also a physical keyboard?
Low temperature environment can be entered with gloves, secondly, do not need to find and open the soft keyboard, input more convenient, better operating experience.

  • Currently available48Key alphanumeric keyboard

Main configuration parameters

Equipment type Zebra MC319z
Operating system Microsoft Windows Embedded Handheld 6.5.3
CPU Intel Xscale Pxa270 ,520MHz
Internal memory 512MB RAM / 1 GB Flash memory
Screen 3 inches(320x320) QVGA Backlit touch screen
Keyboard alphanumeric(48key)
RFIDStandard EPC Class 1 Gen;EPC Gen2
RFIDantenna Linearly polarized antenna
See more
Bar code reader Two dimensional spacing reading head
Wireless network IEEE 802.11 a/b/g
Bluetooth Standard
NFC There is no
Class of protection IP54
Operating temperature -10°to 50°/ 14℉ to 122℉
weight 650g
battery 3.7V,4400mAh battery
Expansion slot There is no
Keep under warranty A year
