iData 70 mobile intelligent terminal

Released Date: Aug 02,2022 Article Source: Suzhou Zhiguan Yisheng Information Technology Co., LTD

Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.iData70Mobile intelligent terminal more durable stable operation speed acquisition, make the work more efficient equipped with the industry's latest industrial scanning engine, sensitive and accurate system-level acquisition process optimization, scan speed comprehensively improve the newly designed ergonomic scanning......

  Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.

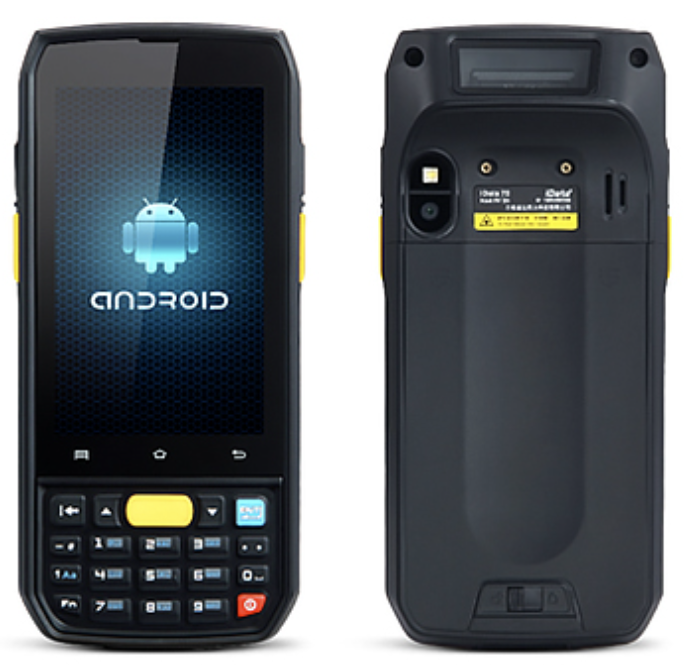

  iData 70Mobile intelligent terminal

  IDATA 70Mobile intelligent terminal

  iData 70Mobile intelligent terminal -- More durable and stable operation

  Speed collection, make the work more efficient

  Equipped with the industry's latest industrial scanning engine, sensitive and accurate;

  System-level acquisition process optimization, scan speed is improved;

  The newly designed ergonomic scanning Angle allows scanning verification in one step;

  Full supportNFC,GPSPositioning, high-definition camera and other data acquisition methods, professional, accurate, fast collection of business data.

  iData 70Mobile intelligent terminal -- Efficient transmission, so that data transmission more timely

  The whole network4GWireless communication, to meet the needs of on-demand network selection, to meet more complex scenarios;

  dual-frequencyWi-FiTechnology to reduce network transmission delay and ensure real-time communication of device data;

  Bluetooth5.0Transmission technology, transmission speed2Times, the effective working distance can reach300Meters, the transmission distance is faster and farther.

  iData 70Mobile intelligent terminal -- Long endurance, meet the all-weather operation

  equip5000 mAhLithium polymer safe battery, support all-weather full load operation, support5V/2Aand9V/2AFast charging scheme;

  Low power chip and system optimization, high efficiency and low power consumption;

  Support fast charging technology, shorten charging time40%Once again improve the endurance.

  iData 70Mobile intelligent terminal - Support flexible and fast customization

  Customization for enterprise special scenarios, buttons can be customized/shell/camera/Wi-Fi/RFIDPerformance scheduling;

  The back can optionally expand the back clip, which can realize identity reading/NFC/RFID.

  iData 70Mobile intelligent terminal -- System configuration

  processor        8nuclear2.0GHzHigh performance processor/4nuclear1.3GHzHigh performance processor

  Operating system    Android 10.0/Android 6.0

  Internal memory      (ROM+RAM)16GB+2GB(support32+3/64+4/128+6)/16GB+2GB

  Expansion slot    Micro SDcard , ESIMselectable

  Display screen       4Inches,800×480

  Touch screen      Industrial capacitive screen

  camera    (Optional) Rear setting800Megapixels (optional1300Million), autofocus, tapeLEDFill-in light postposition800Megapixels, autofocus, tapeLEDFill-in light

  Scanning glass   Corning Gorilla°Glass (Corning)

  Keyboard    The right side20Key, side4Key, anti-wear, internal light industryIMDKeyboard

  battery    3.8V5000mAh Lithium polymer safe battery, Backup power is optional

  Audio frequency    Built-in microphone/Type-C/Built-in microphone/Micro USB

  Tips    Vibration cue/LEDTips/Audio prompt

  Vibrating motor    Built-in vibration motor

  sensor   Vibrating motor/G-Sensor/Distance sensor/Light sensor/Terrestrial magnetism/gyroscopeG-Sesnor/Proximity sensor/Light sensor/Terrestrial magnetism

  iData 70Mobile intelligent terminal -- structural parameters

  Size (LxWxD)159mm×71mm×20mm

  weight262G (including battery)

  Communication transmission

  Wireless city network (Network frequency)






  4G:FDD-LTE:B1/B3/B7/B8/B20 TDD-LTE:B38/B39/B40/B41

  Wireless wide area network (Data service)


  Wireless local area network

  Wi-Fi 802.11a/b/g/n/r/acDual frequencyWi-Fi:2.4G+5G)Wi-Fi5GPABlow upWi-Fi802.11a/b/g/n(Dual frequency:2.4G+5G)

  Bluetooth Bluetooth 5.0/Bluetooth 4.0

  GPS supportGPS/AGPS/GLONASS/Big Dipper/Galileo/QZSSsupportGPS/AGPS/Big Dipper/Glonass

  iData 70Mobile intelligent terminal - Use environment

  Development tool Android SDK+JDK+EclipselSupport languageJava

  Operating temperature -20℃~60℃

  Storage temperature -40℃~60℃(including battery);-40℃~70℃(Battery not included)

  humidness 0~95%(no condensation)

  Drop specification More than once1.5mDrop cement concrete floor

  Class of protection IP65

  Electrostatic discharge ±15kVAir discharge, Mister8kVDirect discharge

  One-dimensional laser scanning engine

  Scanning accuracy 5mill

  Up and down oblique Angle ±651Left-right offset Angle±50

  Ambient light Sunlight:10,000ft.Candles(107,640Lux)

  Artificial light: 450ft.Candles(4,844Lux)

  Sweep frequency 104±12time/seconds

  Laser safety class Classlone-dimensional/2D image scanning engine

  Scanning accuracy 3mil c39/128

  Rotation Angle 360°

  Up and down oblique Angle ±45°

  Left-right offset Angle ±65°   Laser safety class Classll   Image resolution 844(H)×640(V)

  Picture frame rate 60fps

  Light source system White light, laser aim

  Minimum print contrast 20%

  iData 70Mobile intelligent terminal --NFC(Optional)

  frequency 13.56MHzRead distance60mmwithin/10mmwithin

  Communication protocolISO14443A/14443B/15693

  input/Output interface

  USBport1Pieces (Type-CInterface), supportedType-CHeadphone function/1Pieces (Micro USBInterface) Charging interface1aNPeripheral equipment and accessories

  iData 70Mobile intelligent terminal -- Standard accessories

  Lithium polymer battery, power adapter, strap, hand cord, bottom charging card clip,USBData cable

  Optional accessories

  Single seat charge, quadruple charge (device charge), quadruple charge (battery charge), protective case, protective film, waist pack, expansion back clip, bottom charging card clip.
