Connects to Android devices via Bluetooth

1. Select the device to be paired as shown below, where"17355523020363"ForRFD8500Barcode scanning gunS/NSerial number, click"RFD850017355523020363After the device is paired.

2. Give it another pullRFD8500Barcode scan gun trigger, match is successful.

Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.

Connects to Android devices via Bluetooth

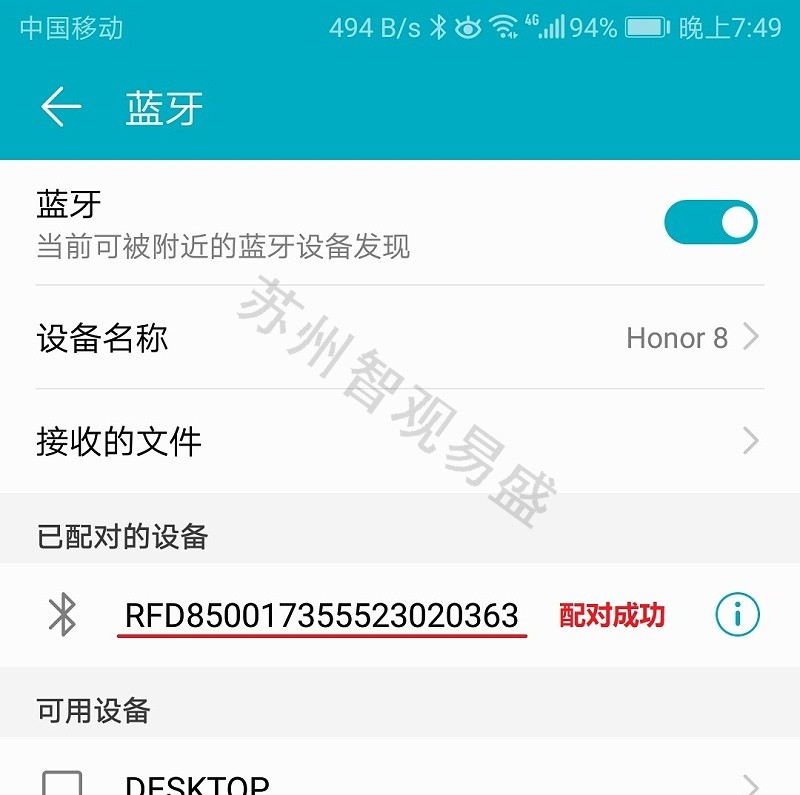

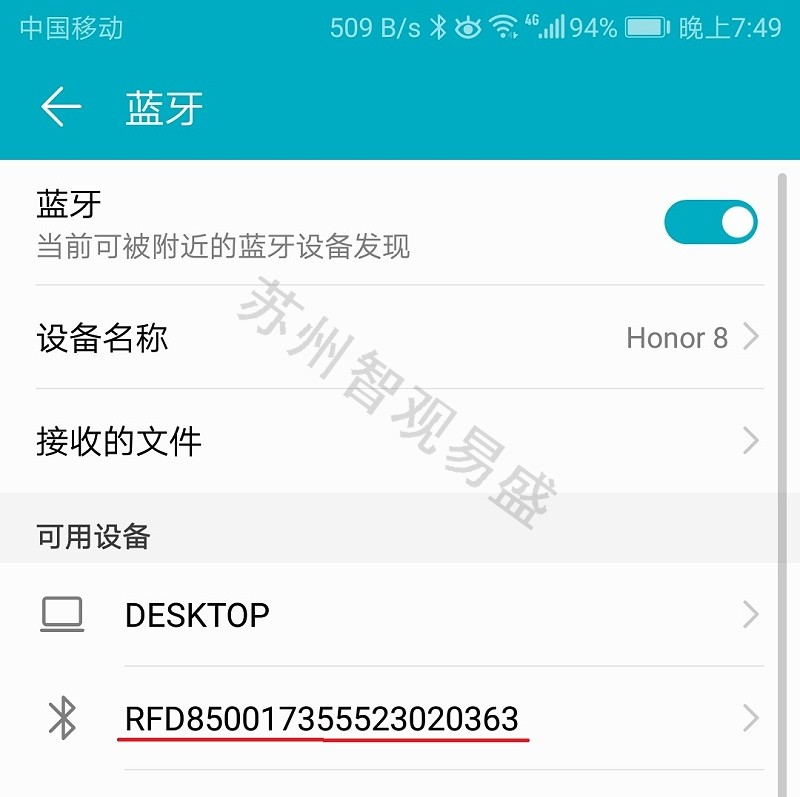

1. Select the device to be paired as shown below, where"17355523020363"ForRFD8500Bar code scanner theS/NSerial number, click"RFD850017355523020363After the device is paired.

2. Give it another pullRFD8500Bar code scanner Trigger, match made.

Bluetooth Settings1

Bluetooth Settings2

UseDemosoftware

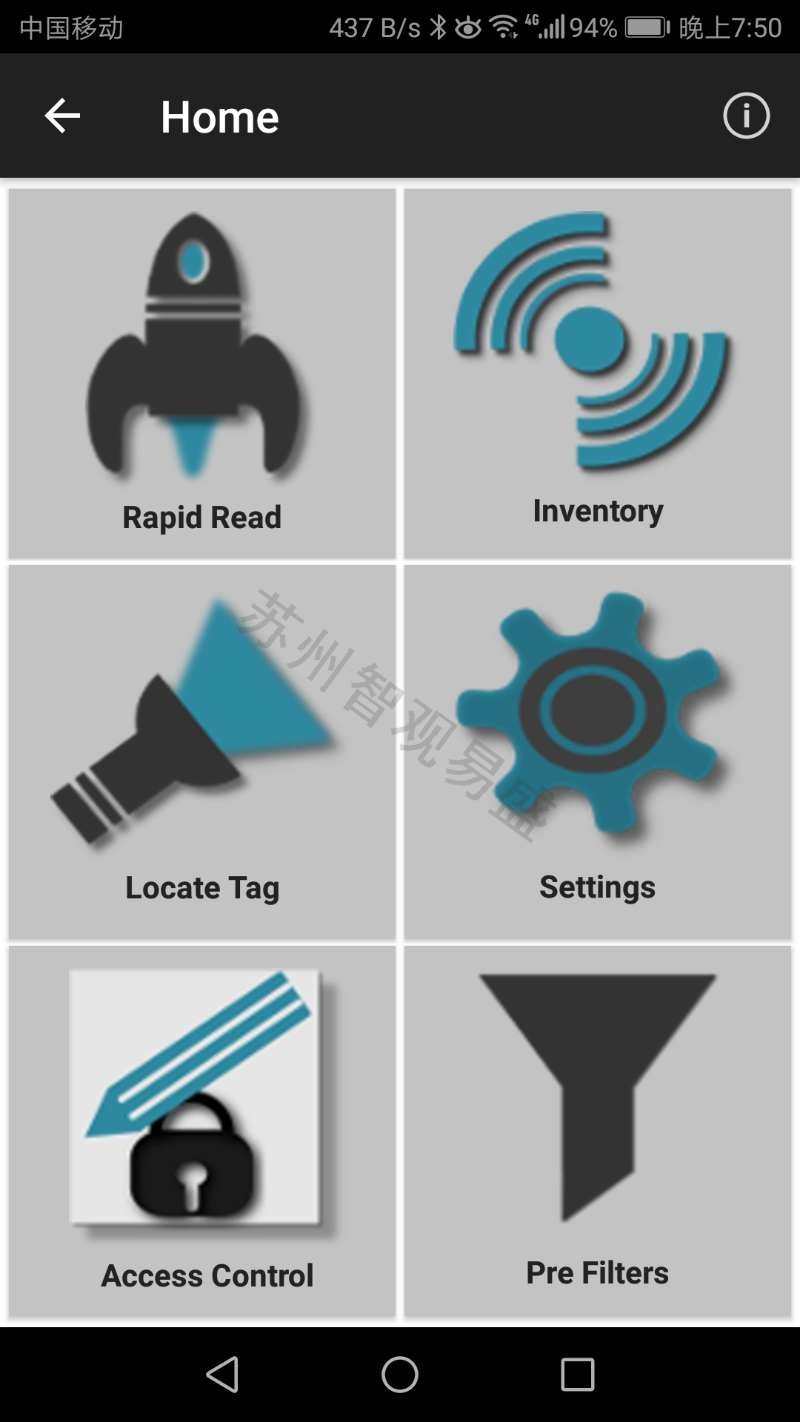

1.tap RFD8500Bar code scanner The icon on the software desktop is displayed

Demo

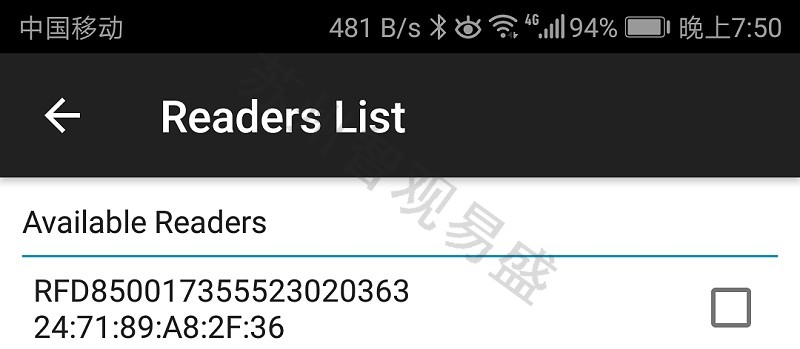

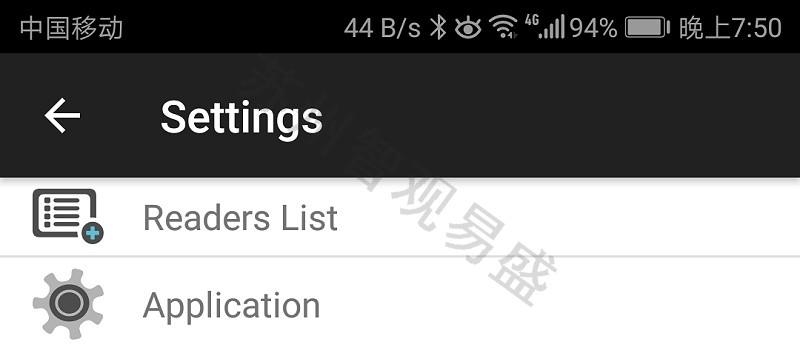

2.Again inDemoAdd to the software to connectRFD8500Bar code scannerequipment

Demo01

Demo02

Rapid Readscreen

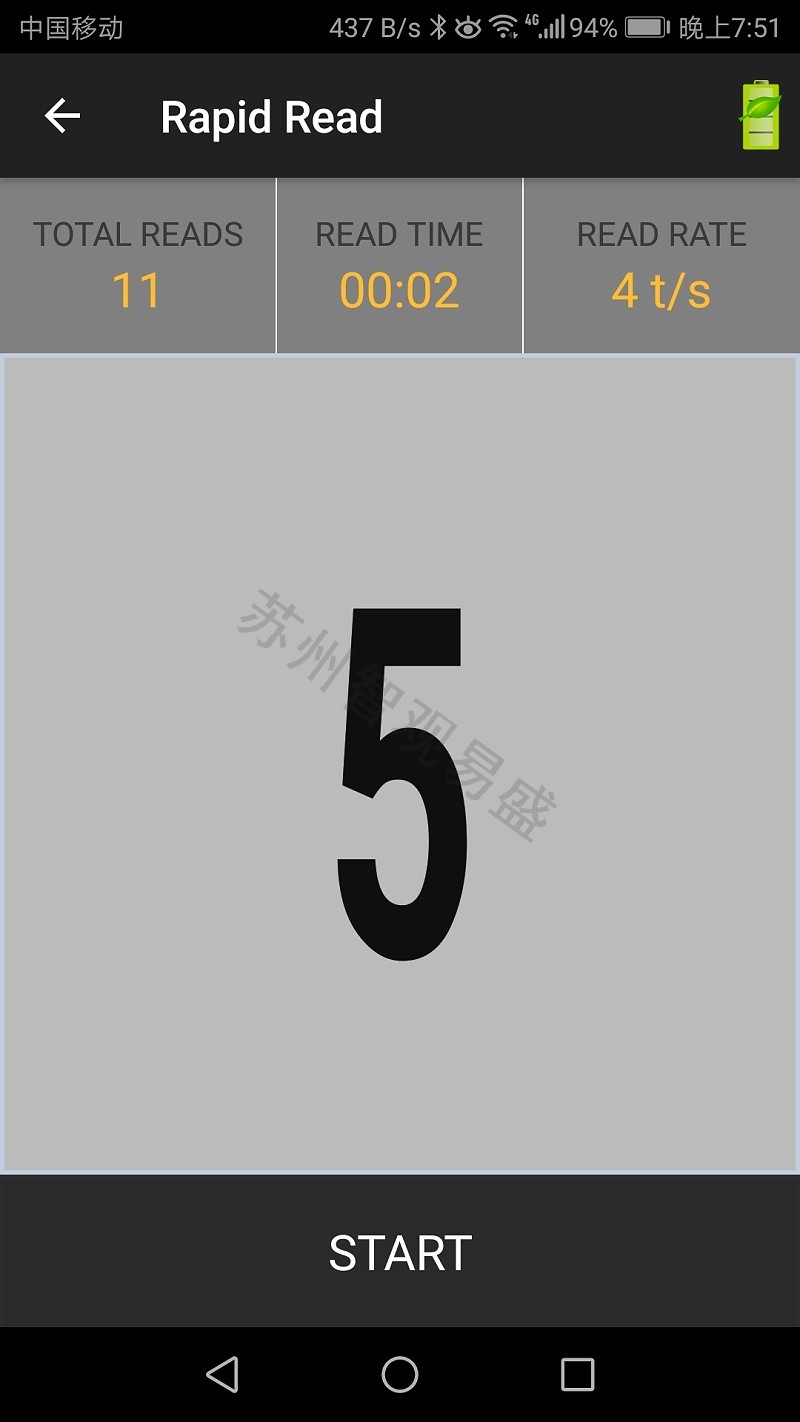

buckleRFD8500Bar code scannerPull the trigger, read the picture below5A different tag

Rapid Readscreen

Inventoryscreen

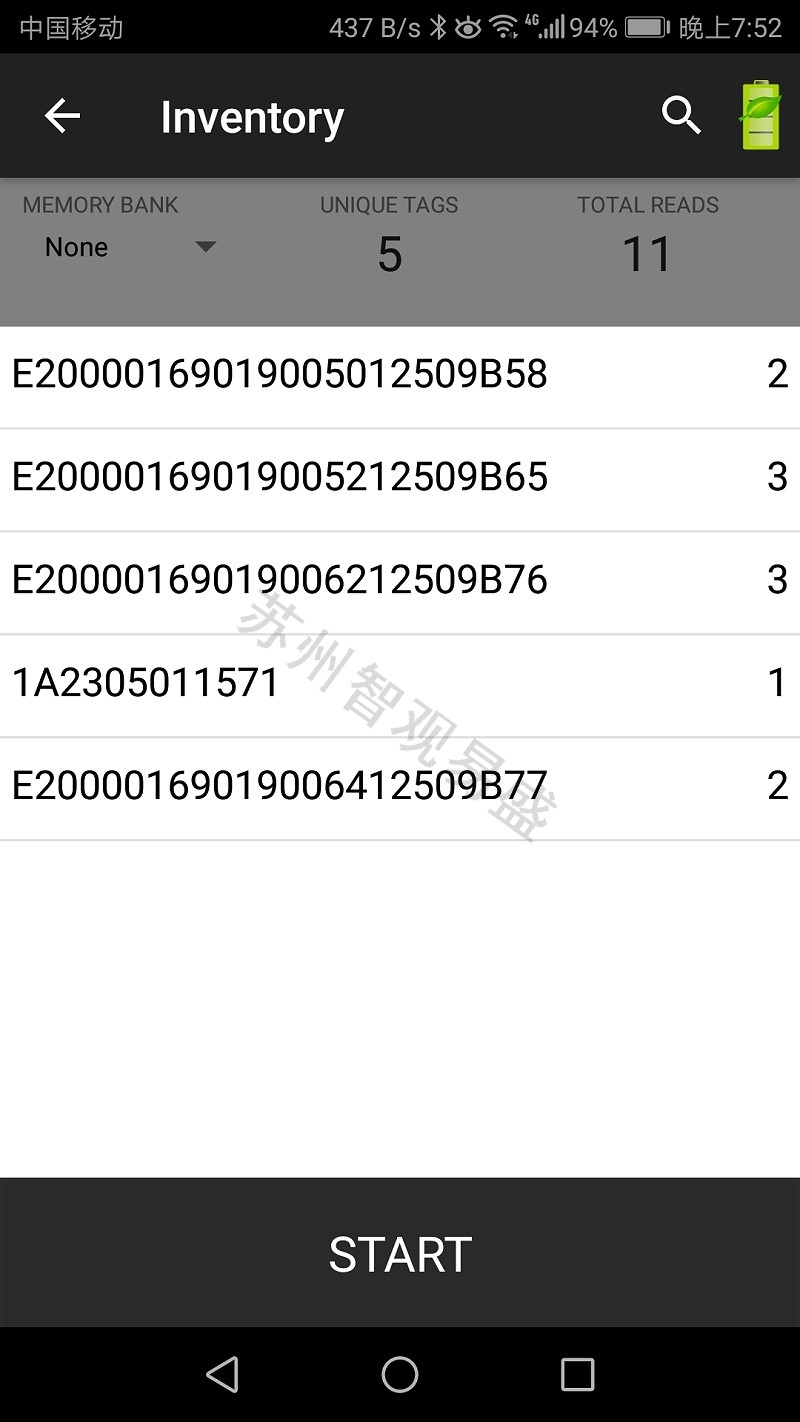

reveal5With a different labelEPCZone information,acquiesceEPCZone information

Inventoryscreen

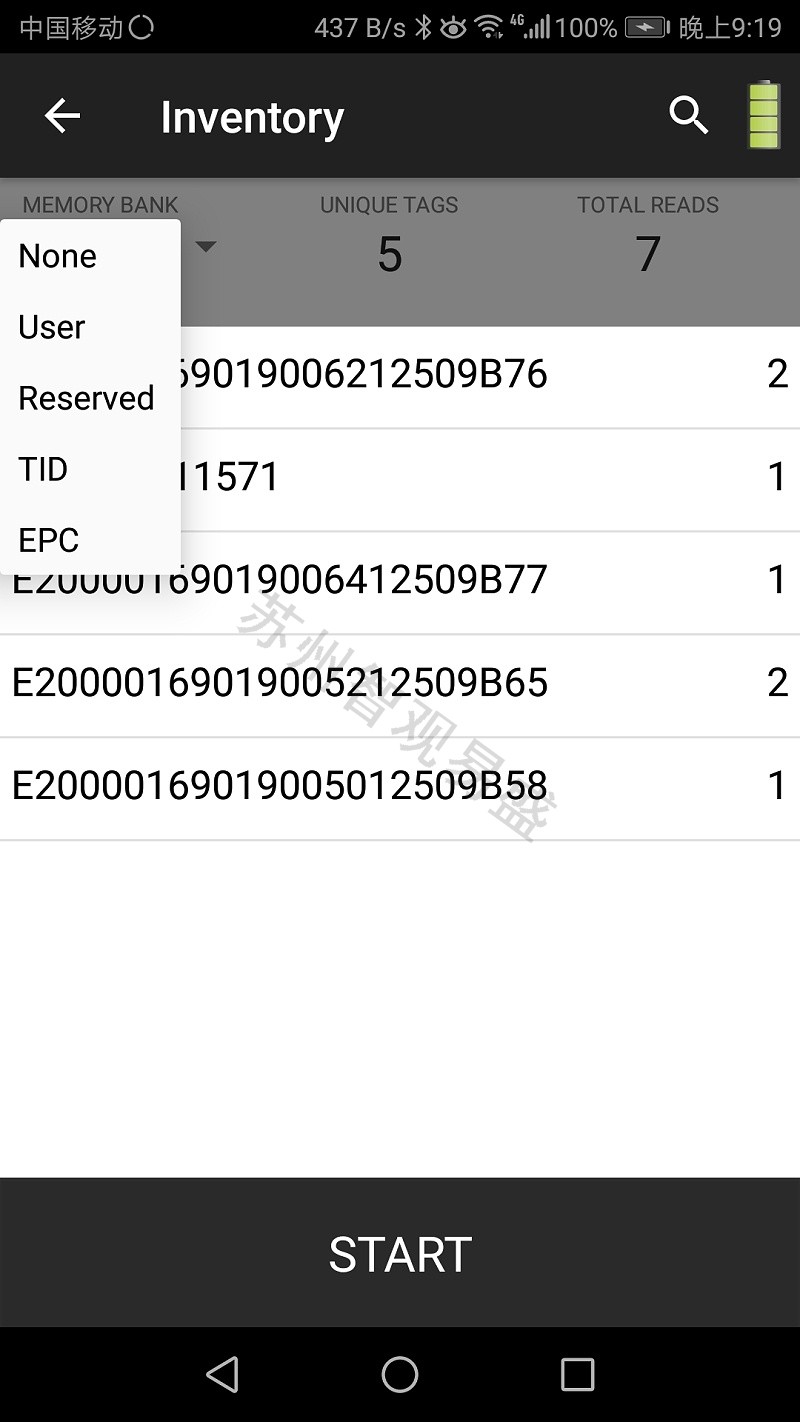

To display other area information, click"MEMORY BANKSelect from the drop-down list

MEMORY BANK

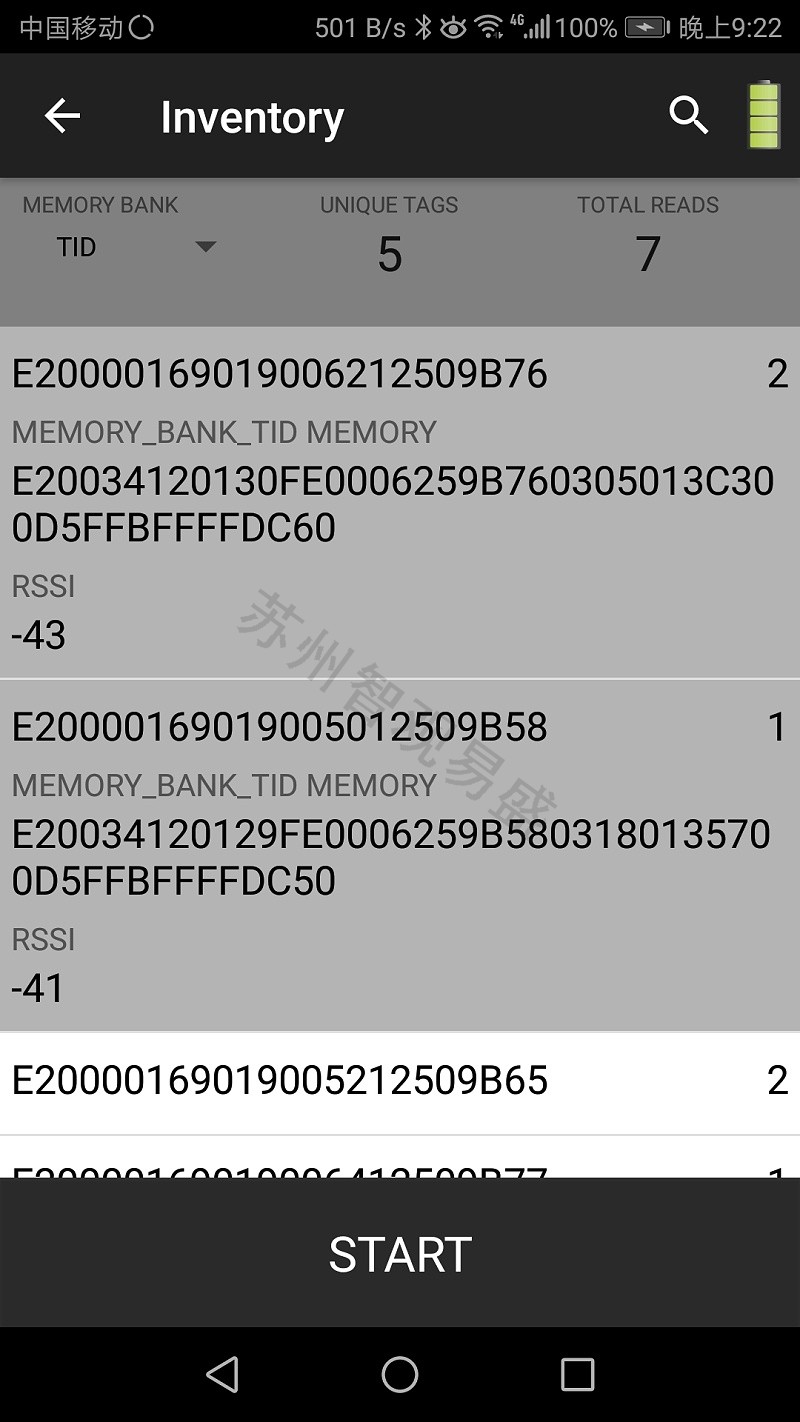

As shown below, select ReadTIDArea information, which is displayed asEPCZone information, click on the bottom will be displayedTIDZone information

TIDZone information

indexing

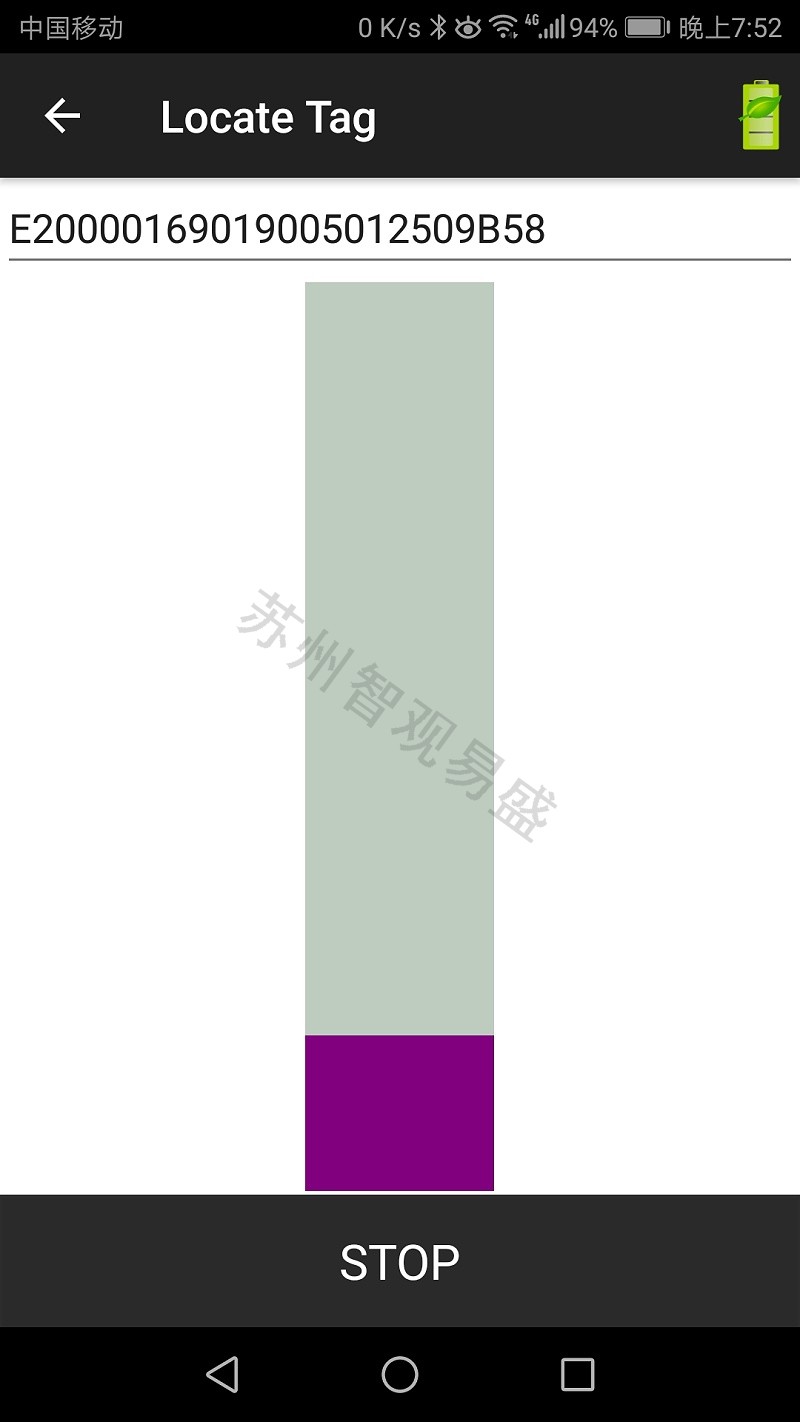

1.If you want to find a label, you can enter the label you want to search in the box indicated in the figure belowEPCArea code

EPCArea code

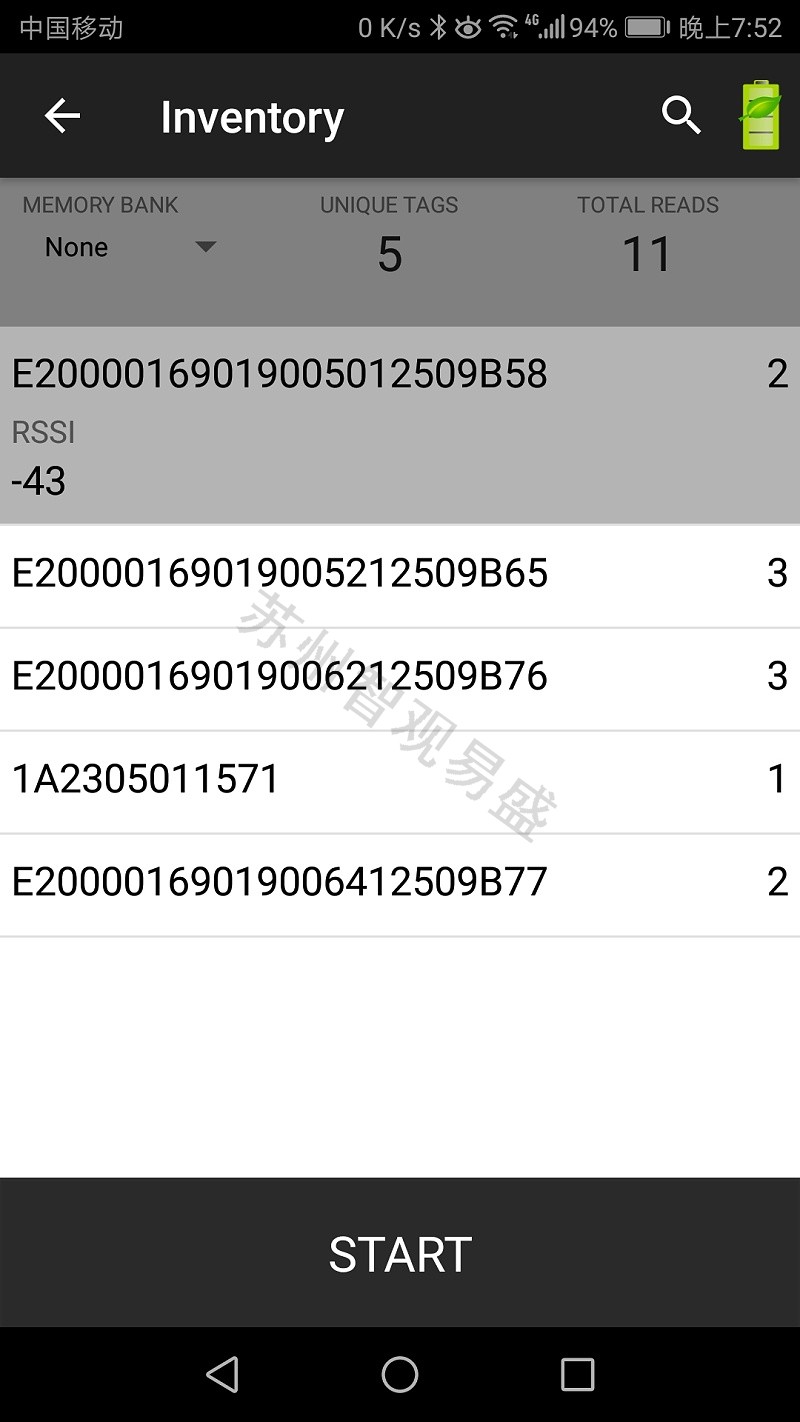

2.You can also read the following figure, read the list of tags, select a label you want to look for, and then enter the interface shown in the previous figure to search

Interface search

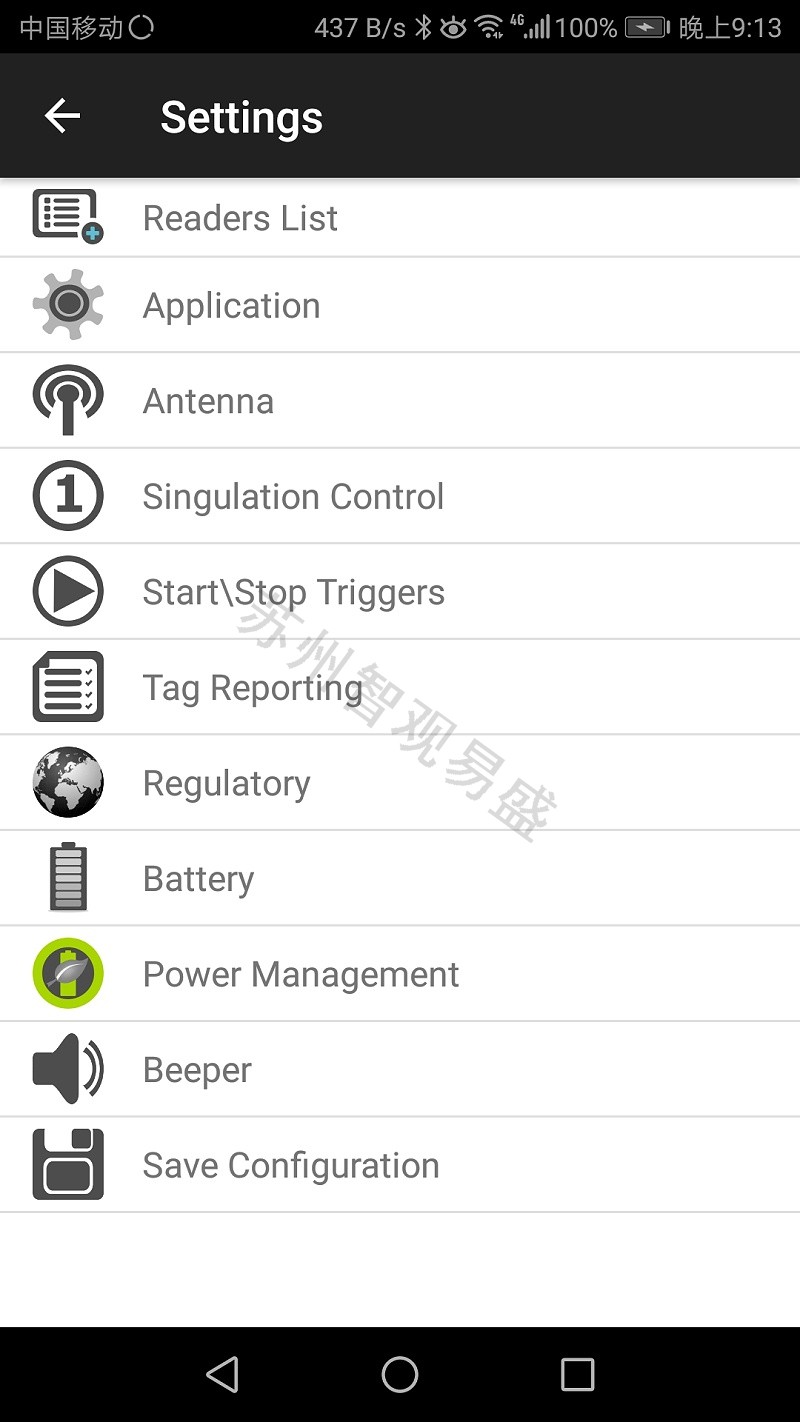

Setting interface

moreRFIDFor products and solutions, please visit our website( www.ivesiot.com )Or online customer service (13771886689) Consultation
