Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.

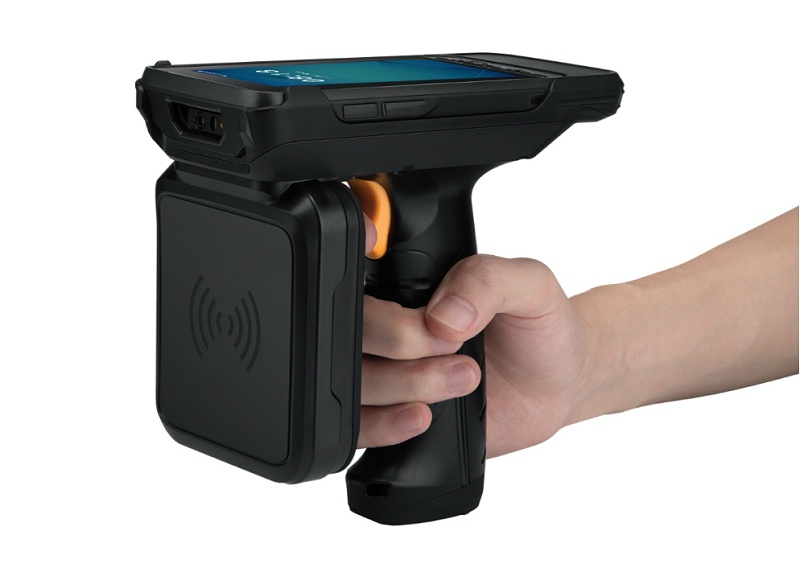

  iData 50UHF RFIDharvester   Faster, more stable wireless data transfer

  The whole network4G The industry takes the lead in supporting the whole network4GWireless communication provides faster data transmission rates for enterprise mobile applications, anytime, anywhere connection, and makes mobile office more convenient.

  5G Wi-Fi support5G Wi-FiTransmission technology, dual-frequency free switching transmission, effectively solve congestion, conflict, interference, signal stronger and more stable, faster data transmission speed.

  iData 50UHF RFIDharvester   More powerful and efficient data acquisition

  Excellent UHFRFIDread-write With high performanceUHFRead and write module, with high sensitivity antenna, read and write distance up to the longest10MAbove, label reading rate≥200tags/s.

  Equipped with the industry's most powerful bar code scanning engine, and supportGPSA variety of professional data automatic identification and collection methods, such as camera, help users accurately and quickly collect on-site business data.

  iData 50UHF RFIDharvester   Easier to use and lighter

  4.7Inch full view HD touch screen, efficient work 4.7inches---Gold size best for one-handed operation; Ultra HD display,1280*720 Resolution; Touch screen adopts industrial super sensitive capacitive screen, support gloves, dry and wet hand touch.

  advancedAndroid OS+topspeed4nuclearCPU Based on the advanced Android operating system, equipped with the latest platform speed4Core processor, smoother operation, faster running.

  Use rechargeable dual electric system: Use rechargeable polymer lithium battery system, large capacity,PDABuilt-in large capacity battery plus a gun battery, with a gun state can continue barcode scanning12For more than one hour, ensure that the equipment works normally throughout the day.

  iData 50UHF RFIDharvester   System configuration

  processor                       4nuclear1.25GHz High performance processor

  Operating system                    Android 6.0

  memorizer                       16GB ROM+2GBRAM

  Expansion slot                    Micro SDCard (Maximum support32G)

  Display screen                        4.7Inch,1280 x 720 High resolution LCD screen

  Touch screen                        Industrial capacitive touch screen (support touch with gloves)

  Camera (optional)           postposition800Megapixels, autofocus, tapeLEDFill-in light

  Scanning glass                 Corning® Gorilla®Glass (Corning)

  Keyboard                             The right side4Key, side4Key, power key

  battery                          (Optional)3.8V 3600mAh Lithium polymer battery/ 3.7V 3300mAh Lithium polymer battery (PDA) +3.7V                                         5200mAh(A gun)

  Audio frequency                            Built-in microphone/Earphone connector

  Tips                            Vibration cue/LEDTips/Audio prompt

  Vibrating motor                     Built-in vibration motor

  sensor                         G-Sensor(Gravity sensor)

  iData 50UHF RFIDharvester   Structural parameter

  Size (LxWxD)           PDA:150 mm ×73.5mm×16mm(Head24mmThick)

                                       PDA+Gun:175mm×89mm×165mm

  weight                              PDA(Battery included)+Take a gunRFID)710g

                                       PDA(Battery included)+Take a gunRFID)530g

  iData 50UHF RFIDharvester   Communication transmission

  Wireless wide area network                GPRS/EDGE/CDMA2000 1x/EVDO/HSPA+/TDD-LTE/FDD-LTE (Data services) :

  Wireless local area network                 Wi-Fi 802.11 a/b/g/n(Dual-band:2.4G+5G)

  Ethernet communication selectable

  Bluetooth Bluetooth 4.0

  GPS High performanceGPS/AGPSNavigation chip

  iData 50UHF RFIDharvester   Use environment

  Development tool                        Android Studio/Visual Studio

  Support language                        Java/Xamarin

  Operating temperature                        -10℃~50℃(14F~122F)

  Storage temperature                       -20℃~60℃(-4F~140F)

  humidness                               0~95%(no condensation)

  Drop specification                       More than once1.2Meters of falling cement concrete floor

  Class of protection                       IP65

  Electrostatic discharge                       ±15kVAir discharge, earth8kVDirect discharge

  One-dimensional laser scanning engine

  Scanning accuracy                        5mil

  Rotation Angle                        ±35°

  Up and down oblique Angle                ±65°

  Left-right offset Angle                ±50°

  Ambient light                        Sunlight:10,000ft.Candles(107,640LuxArtificial light:450ft.Candles(4,844Lux)

  Sweep frequency                    104±12time/seconds

  Laser safety class               Class ll

  Support bar code              UPC/EAN,POST,Code 128,Code 39,Code 93,Code 11,Codabar,Interleaved                                2 of 5,Discrete 2 of 5,Chinese 2of5,MSl,RSSIEtc.

  one-dimensional/2D image scanning engine

  Scanning accuracy                        3mil c39/128

  Rotation Angle                        360°

  Up and down oblique Angle                 ±45°

  Left-right offset Angle                 ±65°

  Sweep frequency                       1time/50ms

  Laser safety class                 Class ll

  Image resolution                     844(H)×640(V)

  Picture frame rate                        60fps

  Light source system                        White light, laser aim

  Minimum print contrast              20%

  iData 50UHF RFIDharvester RFID(Optional)

  frequency                               902MHz-928MHz,865MHz-868MHz(Customized to desired frequency band)

  Communication protocol                        ISO18000-6B/6C/6D

  Antenna gain                        4dBiCircularly polarized antenna

  Output power                        5-30dbmtunable

  Recognition distance                        reachable10m(Depending on the label)

  iData 50UHF RFIDharvester input/Output interface

  USBport 1(Micro USBInterface)

  Charging interface 1

  iData 50UHF RFIDharvester Peripheral equipment and accessories

  Standard fittings 3-in-1 charger, power adapter

  Optional accessories Get the gun wired
