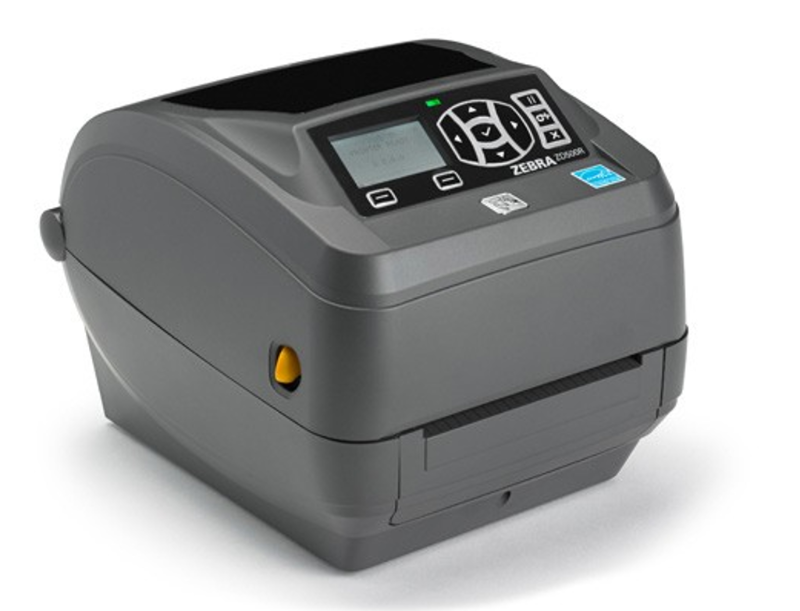

Zebra ZD500R RFID printer Desktop printer

Released Date: May 30,2022 Article Source: Suzhou Zhiguan Yisheng Information Technology Co., LTD

Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers. With advanced features andRFIDFeatures a compact, easy-to-use printing device added for desktop printersUHFRFIDPrinting and coding functions,ZD500R™expandedZeraRFIDPrinter category. Compact typeZD500RDesigned for space-limited applications, it provides a simple one......

  Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.

  Zebra ZD500R RFIDprinter   With advanced features andRFIDFeatures a compact, easy-to-use printing device

  By adding for desktop printers UHF RFID Printing and coding functions,ZD500R™ expandedZebra RFID Printer category. Compact typeZD500RDesigned for space-constrained applications, it offers simple one-click printing and coding, direct loading, and automationRFIDCalibrate. The product is easy to use, making it ideal for businesses that do not have technical support staff, such as print applications for retail stores with premium signage.


  Zebra ZD500R RFIDprinter   Zebra OneCare service

  byZebraThe global Service and support team provides support

  passZebraAnd by10,000A trusted network of partners provides fast access to repair support, real-time agent technical support and software support anywhere in the world.Zebra OneCare™ A wider range of warranties, including standard warranties such as normal wear and tear maintenance services and warehouse priority repair turnaround time guarantees, are available at a fraction of the cost of a single repair.

  Zebra ZD500R RFIDprinter  ZebraGenuine consumables

  With the help ofZebra™Authentic consumables ensure stable print quality of the printing process, reduce downtime and improve work efficiency. We produce every consumable to ensure that the same material is always used, so that you get a clear, readable and scannable output, and you don't have to adjust the printer depth Settings when changing the media roll.

 Zebra ZD500R RFIDprinter  Link-OSenvironment

  To meet the changing expectations of our customers and the growing demand for mobile, smart and cloud-connected devices,Zebra® The following software platforms are built to support its devices:Zebra Link-OSThe environment. This better solution makes integration, management and maintenance easier for users from all locationsZebraThe printer.

  Link-OS The environment is highly flexible, allowing users to develop applications in new and better ways to communicate with mobile devices anywhere in the worldZebraPrinter interaction. With new analytics-driven insights, users can perform updates, collect data, and make more informed business decisions.

  Zebra ZD500R RFIDprinter   Advanced technology and features Simple operation

  Act asZebraThe best-selling thermal desktop printer,ZD500RThe printer supports thermal and thermal transfer printing and is compatible with inlays from many major suppliers. Can be used with manyRFIDTags and signage work together - from small item-grade tags to large boxes and pallets tags.

By the closer spacedRFIDInlay encodes,ZD500RHelp to reduce the cost of media, reduce media waste, reduce the frequency of media volume replacement. This printer is a classic ENERGY STAR® Certification saves you money throughout its life cycle.

  Zebra ZD500R RFIDprinter   Advanced features and options to meet your needs

  Printers meet demanding application requirements with a range of standard features, including parallel, serial,USB And Ethernet connection; Large capacity memory; and ZPL® Programming language. Optional options include paper cutters and strippers,Bluetooth®withWi-Fi®Authentication communication and300 dpiHigh resolution printing.

  Zebra ZD500R RFIDprinter   Easy integration and monitoring

  ZD500RMake full use of Zebra Link-OS® Environment - A better software platform that supports Run powerful applications designed to enhance the capabilities of printers, making it easier for users to integrate and manage them into their global business from all locations.

  Zebra ZD500R RFIDprinter   Cloud technology

  ZD500RhaveLink-OS Cloud ConnectApplications that connect directly and securely to cloud environments, enabling reliable forwarding of data from a variety of ports.

 Zebra ZD500R RFIDprinter   Easy access to information

  Link-OS Print Touch™ The application allows the user to use it with a single clickZD500RWith supportNFC(Near Field Communication) device pairing for immediate access to required data, includingZebraHow-to videos and product support.

   Zebra ZD500R RFIDprinter   specification

   Zebra ZD500R RFIDprinter   RFID

  Support andUHF EPC Gen 2 V2,ISO 18000-63andRAIN RFIDProtocol compatible signage

  The lower limit of the spacing between printing and encoding is0.6 in./16 mmThe tag of

  Adaptive coding techniques are simplifiedRFIDThe setup doesn't have to be complicatedRFIDPositioning guide

  RFIDJob monitoring tools can trackRFIDproperty

  RFID ZPLCommand provided with existingZebra RFIDPrinter compatibility

  Support for industry standards-based multi-vendor serialization chips (MCS)

  Support pair compatibility ATA Spec 2000 The data block of user memory is permanently locked

  integrated ThingMagic® RFID reader/encoder

  Zebra ZD500R RFIDprinter   Standard characteristic

  Printing method: Heat transfer and heat sensitive

  ZPL Programming language

  Structure: double wall frame structure

  Print head and press roller changes without tools

  OpenACCESS™ Designed for easy loading of media

  Fast and easy carbon belt installation

  Simple media calibration

  Four connection methods:USB, parallel, serial and Ethernet

  Real time clock

  LCD User interface

  support Link-OS

  Print TouchApplication program

  3"Dielectric core adapter

  obtained ENERGY STAR authentication

  Zebra ZD500R RFIDprinter   Printer specification

  Resolution:203 dpi/Per millimeter8Point,300 dpi/Per millimeter12 Point (optional)

  Memory:512 MB Flash memory,256 MB SDRAM

  Maximum print width:4.09 in./104 mm

  Maximum print speed: per second6 in./152mm(203 dpi), every second4 in./102 mm (300 dpi)

  Medium sensor: multi-position transmission and full-width reflective sensor

  Maximum print length:39.0 in./991 mm

  Zebra ZD500R RFIDprinter   Medium characteristic

  Medium width upper limit:0.75 in./19 mm - 4.25 in./108 mm

  Medium volume size: Upper outer diameter:5in./127 mm, core inner diameter:0.5 in./12.7 mm,1.0 in./25.4 mm,1.375 in./35 mm,1.5 in./38 mm,3 in./76 mm

  Medium thickness:0.003 in./0.075 mm - 0.012 in./0.305 mm

  Type of media: roll or folded paper, die-cut or continuous thermal labels (black label optional), label paper, continuous receipt paper, and wristbands

  Zebra ZD500R RFIDprinter   Carbon strip characteristics (thermal transfer models only)

  Label and backing paper length: Upper limit of discontinuous length:39 in./991 mm, label length (tear mode) :0.25 in./6.35mm, lower limit of label length (strip mode) :0.5 in./12.7 mm, lower limit of label length (cutter mode) :1 in./25.4 mm

  Width:1.33 in./33.8 mm - 4.3 in./110 mm

  Roll Core:0.5 in./12.7 mm(inside diameter)

  Zebra ZD500R RFIDprinter   Operating characteristic

  Working temperature:40° to 105° F/4.4° to 41° C

  Storage temperature:-40° to 140° F/-40° to 60° C

  Working humidity:10% to 90%, no condensation

  Storage humidity:5% to 95%, no condensation

  Electrical specifications: automatically detectable (compatible PFC)100-240VAC,50-60Hz, obtained ENERGY STAR authentication

  Zebra ZD500R RFIDprinter   Organization certification

  Radiation:FCC Part 15,Subpart B,VCCI,C-Tick Radiation and immunity:(CE):EN55022 Class-B,EN61000-3-2,EN61000-3-0 andEN55024,CCC,Wi-Fi authentication

  Security:IEC 60950-1:2005 + A1:2009,EN 60950-1:2006 + A11:2009 + A12:2011+A1:2010+ AC:2011,UL 60950-1:2007 R12.11,CAN/CSA-C22.2 No. 60950-1-07 + A1:2011 and TUV NRTL

  Zebra ZD500R RFIDprinter   Physical parameter

  Length:10.0 in./254 mm, width:7.6 in./193 mm, height:7.5 in./191 mm,

  Weight:4.9 lbs/2.2 kg

  Communication and interface functions

  RS-232Automatic sensing serial interface,DB-9(standard)

  USB V2.0, bidirectional (standard)

  Centronics® Parallel (standard)

  Ethernet --10/100 Built-in (standard)

  Wireless --802.11 a/b/g/n And Bluetooth 3.0(optional)

  Fonts and graphics

  16 Species built in for expansion ZPL II Bitmap font

  2 Species built in for scaling ZPL typeface

  protogenesis OpenType Font support

  compatible Unicode® Standard for multi-language, on-demand thermal printing

  56 MB The amount of non-volatile memory available to the user, which can be used to download content

  4 MB user-available SDRAM

  Support for user-defined fonts and graphics, including custom logos

  ZPL II Drawing command - for drawing boxes and lines

  Zebra ZD500R RFIDprinter   Optional function

  300 dpi High resolution printing

  Wireless:802.11 a/b/g/n And Bluetooth 3.0

  Stripper - Use the pick sensor for label stripping and presentation

  Suitable for various media types of paper cutter

  Keyboard display unit --ZKDU™ Keyboard display unit for standalone printing solutions

  Zebra ZD500R RFIDprinter   Market and application areas

  Retail business

  Item level specials label printing

  In-store return sign printing, display, promotional and other items sign printing

  Healthcare industry

  Sample tracking

  Patient identification

  Asset tracking

  Manufacturing industry

  Semi-finished product label

  Cargo box/Pallet tracking

  Component label printing

  Asset tracking


  Document tracking

  MIL STD 129compliance

  Evidence tracing

  Hotel and Leisure


  Ticket printing

  Rapid assembly

  Queue management
