IData T2 UHF

flagshipRFIDproduct

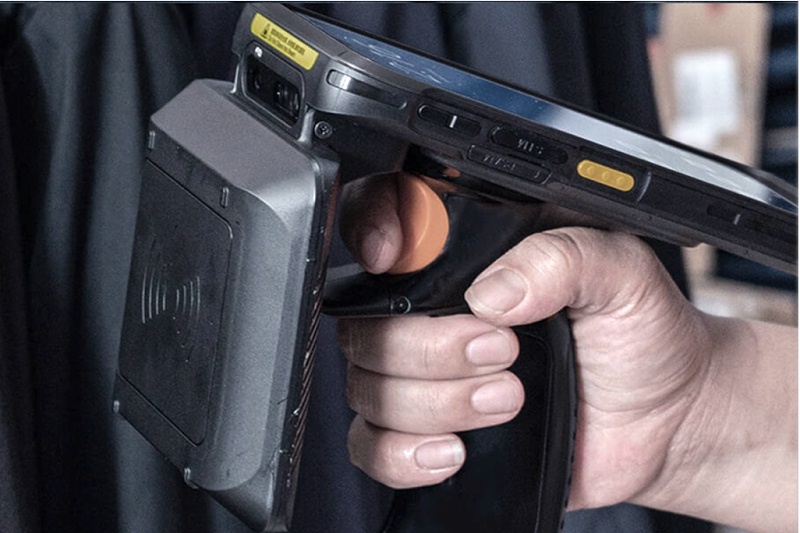

IData T2 UHFisIdataThe latest one outRFIDHand readerIs a cost-effectiveRFIDHand reader.

IData T2 UHF RFIDEquipped with high-performance modules+High sensitivity circular polarization antenna, reading distance up to20m, the label reading rate is up to700tags/s;8nuclear2.0GHzHigh performance processor+Android11.0The performance is fully upgraded, the operation is more smooth, and it can easily cope with the challenges of the mainstream software in the market.

IData T2 UHF RFID Easy to manage equipment design

One-click intercomPTT, the maximum allowed exceed5Ten thousand people on it at the same time, super1.510,000 people communicate online at the same time, so that employees can communicate with each other at any time while working, and maximize the convenience of employees to deal with work.1WHigh-power loudspeaker+Dedicated cavity design allows employees to hear the prompt and scan sounds clearly in noisy environments; Dual card dual standby, so that you can freely choose the operator, free to chooseSIMThe card can choose the operator with the best signal to work and meet the needs of more operating environments.

IData T2 UHF RFID Ergonomic design, more efficient work

6.21Inch comprehensive water drop screen, so that the screen fills the body, so that your employees can easily see the content of the screen, whether indoor or outdoor, to avoid the long-term work of eye fatigue and trouble caused by the screen; Screen andRFIDAntenna formation15°Included Angle,RFIDrecognize/Take a picture/Scan can see the screen operation, staff operation effortless.

IData T2 UHF RFID Safe and reliable, work without worry

6700mAhReplaceable battery+4500mAhBuilt-in battery, easily meet the needs of all-weather high-intensity work, without shutting down the battery can be replaced;

Metal fin+Built-in cooling fan,RFIDModule operating temperature decreases on average10℃More stable performance.

IData T2 UHF RFID Technical specification

System configuration

processor                                     8nuclear2.0GHzHigh performance processor

Operating system                                 Android 11.0

Memory (ROM+RAM)               64GB+4GB(standard)             128GB+6GB(optional)

SIM                                         Select two cards from three slots, supporting two cards and two standby cards

                                               *Three choice two card slot: can put two cards at the same time,nano SIMcard+nano SIMcard/nano SIMcard+TFcard

Expansion slot                                  Micro SDCard (Maximum support1TB)

Display screen                                      6.21Inch, resolution1520*720pixel

Touch screen                                      Industrial capacitive screen, support wet hand operation/Gesture operation/multi-touch/Glove mode

camera                                      overhead160010,000 camera, front500Megapixels with autofocus support

Flash lamp                                     800mAFlash lamp

Keyboard                                        A total of6Key. Side scan key*2, side power button*1, side volume key*2, handle button*1

battery                                        Host: Lithium battery3.85VPower on,4500mAh, non-removable

                                               Handle: Lithium battery3.6VPower on,6700mAh, removable

                                               *Implementation standards:GB31241-2014

Audio frequency                                        Built-in microphone (noise-canceling microphone)

Charging mode                                 Type-CCharging andpinPort charging, supported18WFast charge

Tips                                        High-power horn/Vibration cue/LEDTips/Audio prompt

Vibrating motor                                 Built-in vibration motor

sensor                                     Gravity sensor (G-sensor)/Proximity sensor/Light sensor/Geomagnetic sensor/gyroscope

Intercom function (optional)                   Support one keyPTTCall out

Cooling fan (optional)                   Built-in cooling fan

IData T2 UHF RFID Structural parameter

dimension                                       (LxWxD) 168mm*97mm*145mm

weight                                         680g(Battery included)

Development support

Development language                                 Java

exploitAPl                                   iScan API(Scan development kit),Device API(Equipment Management/Configuration development kit),AndroidStandard interface

Development tool                                 Eclipse/Android Studio

IData T2 UHF RFID input/Output interface

USBport                                Type-C(with headset function)*1,USB3.0

OTGport                                support

PSAM(optional)                     supportPSAM*1

IData T2 UHF RFID Use environment

Operating temperature                                -20C~60℃*For safety reasons, do not charge at low temperatures

Storage temperature                                -40℃~70℃(Battery not included)

humidness                                         0~95%(no condensation)

Drop specification                                  1.5The concrete floor fell many times

Drum drop specification                            500time0.5Meters high roller fell

Class of protection                                     IP67

Electrostatic protection                                    (15KV(air discharge), (8KV(contact discharge)

IData T2 UHF RFID Scanning engine

Bar code support                                       Support one dimension/Two-dimensional bar code scanning

Scanning accuracy                                       ≥3.33mil

Scanning Angle                                       Tilt (pitch) : Bachelor60°; Deflectionskew) :±45; Spin (tilt) :360°

Field Angle                                       Levels:44.3°, vertical:28.4, diagonally:51°

Motion tolerance                                         8m/s

UHF RFID

Communication protocol                                         ISO18000-6C/EPC Class1 Gen2

frequency                                                920MHz-925MHz/902MHz-928MHz/865MHz-868MHz

Output power                                        8-33dbm

antenna                                               Circularly polarized antenna

Reading distance                                        reachable20m

Reading rate                                        reachable700tags/s

NFC(Optional)

frequency                                                 13.56MHz

Read distance                                          60mmwithin

Communication protocol                                          ISO14443A/14443B/15693

Communication transmission

WLANFeature                                    Wi-Fi 802.11/a/b/g/n/ac/d/e/h/i/j/k/r/N/w(2.4G+5Gdual-frequencyWi-Fi), support fast roaming, supportWi-Fi5GPAamplifier

Bluetooth Bluetooth 5.0

GPS                                                GPS/AGPS/Big Dipper/Galileo/GLONASS/QZSS/GNSS

Equipment accessories

Standard fittings                                        USBData cable*1, hand rope*1

Optional accessories                                      Single charge, battery dual charge
