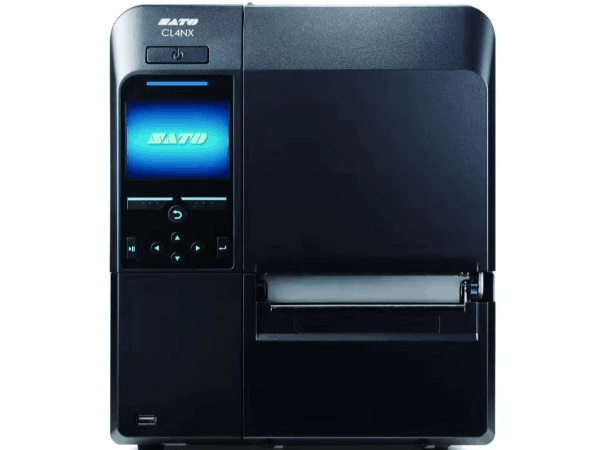

  SatoSATO CL4NXantimetalRFIDprinter

  SATO RFIDtagPrinter characteristics

  Highly accurate data writing

  secureRFIDSelf-check function to prevent bad electronic labels from entering the market

  Dual antenna design, leading international standards

  pro-diversityRFIDtagmedium

  Excellent and stable printing+encoding+Self-check function

  RFIDTechnological advantage

  Non-contact reading

  One-time large batch read anti-counterfeiting function

  RFIDFixed assets management system

  Supporting thickness1.10mmflexibilityRFIDMetal-resistant tag

  4inches

  RFIDLabel printer specification

  Resolution :203dpi/305dpi/609dpi

  Continuous mode, cutter mode, stripper mode

  Communication interface :USB,RS232C,IEEE1284,LAN

  Designed for field applications, suitable for one-time high volume printing&Data write

  UHFApply:Fixed assets, important information, tickets, logistics management, etc

  HFApply :Product process management, library management, etc

  NFCApply:Admission tickets, cultural and entertainment activities, etc

  RFIDLabel printer Model number CL4NX UHF/HF

Resolution                           203dpi                                     305dpi                                                  609dpi

Printing mode                                                                      thermosensitive/Thermal transfer printing

Print speed                       fastest10ips                                fastest 8ips                                            fastest 6ips

*Print speed visionRFIDThe material of the label depends

Print range                       long2500mmxwide 104mm              long1500mmxwide 104mm             long400mmxwide 104mm

Common label

Continuous mode(Backing paper)          P:6~2497mm(9~2500mm)         P:6~1497mm(9~1500mm)        P:6~397mm(9~400mm)

Cutter mode(Backing paper)           P:17~2497mm(20~2500mm)      P:17~1497mm(20~1500mm)    P:17~397mm(20~400mm)

Stripping mode(Backing paper)                                                               P:27~397mm(30~240mm)

breadth(Backing paper)                                                                      22~128mm(25~131mm)

  RFIDtag

*supportableRFIDLabel size depends on the specific chip

  sustentativeRFID Standard

【UHF】920.5-924.5MHz:
             ISO/IEC18000-6TypeC Gen2

  agreement :EPC Gen 2 Class1,NXP,Impini,Alien

【HF】 13.56MHz:

             ISO/EC 15693,ISO/EC 14443 Type A ,

             ISO/IEC 18092

  agreement:ICODESLI/SLIX/SLIX-S,Tag-it HF-1

        my-d,NTAG203,NTAG210,NTAG213/215/216,

        MIFARE UltraLight,MIFARE UltraLight C ,

        my-d move NFC,FeliCa Lite-S

  RFIDTag write mode

  Pre-print detection IC-Write content

  Environmental condition(temperature/humidness)

  Use environment 0~40℃/30~80%RH

  Preservation environment -20~60℃/30~90%RH

  Type of power supply/Power consumption

  AC100V-240V±10%

  Maximum load:180W190VA

  Stand by:22W27VA

  Anti-interference level Class B

  Fuselage size/weight wide271mmxlong457mmxhigh321mm(Contains no protrusions)about15.1kg

  Communication port

  STDstyle(USB20+LAN,Bluetooth,NFC)

  COMBOstyle(USB20+LAN,IEEE1284+RS232C+EXT,Bluetooth,NFC)

  assorting    wireless LAN port

  Drive support system

  Windows Vista/Server2008/7/8/8.1/10   32position

  Windows Server2008/Server2008 R2/Server2012/Server2012 R2/7/8/8.1/10 64position
