How do I print an RFID tag with a ZEBRA RFID printer

Released Date: Jan 03,2022 Article Source: Suzhou Zhiguan Yisheng Information Technology Co., LTD
How to passZEBRA RFIDPrinter printingRFIDtag First you need to calibrate the label paper According to thefeedKey to make sure the paper runs correctly Then you need to proceedRFIDPosition calibration, which can be operated in the printer panel

  Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.

  withRFIDprinter, code and printRFIDtag

  First you need to calibrate the label paper

  According to thefeedKey to make sure the paper runs correctly

  Then you need to proceedRFIDPosition calibration, which can be operated in the printer panel:

RFIDHow to print labels01

  You can also send instructions to the printer

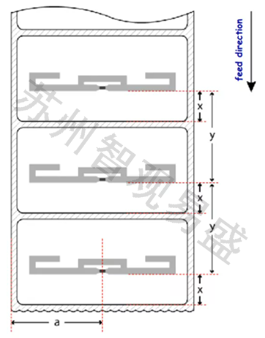

  Next we need to look at the tag and understand some of the following parameters.

RFIDHow to print labels02

  a RFIDDistance from the chip to the left edge

  x RFIDThe distance from the chip to the front edge of the tag

  y RFIDChip to the nextRIFDThe distance of the chip

  amongaThe value is related to the antenna I used in label printing.

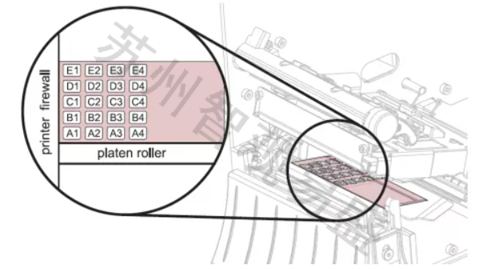

  zebra Inside is an antenna array that selects the appropriate antenna number when the tag is corrected. Such as"A3" "B4"

RFIDHow to print labels03

  Spacing less than26mmParameters of the label (right picture)yThe printer may need to send back a short distance before encoding. If necessary,RFIDCalibration will automatically select the reverse recoil distance.

  For length over26mmFor the label, please distance the label from the front at least16Millimetre place to insert inlay (" in the chart to the right of the parameter ") x").

  RFIDThe position of the inlay in the label has an effect on the print area.

  amongxValue and print time"RFIDProgramming location related ", reflected in^RSIn the parameters.

  Relative mode forward:

  Fxxx = F0 to Fxxx (Among them, xxx Yes tag length (in millimeters) or 999, whichever is the smaller) . Before reading or encoding the media (Print bitmap) Move forward xxx millimeter

  Relative mode backward:

  Byy = B0 to B30 (In millimeters, the longest 30 Millimetre) . Move the media backwards before reading or encoding yy millimeter

RFIDHow to print labels04

RFIDHow to print labels05

  We need something familiarZPLInstructions:

   ^RF For reading and writingRFIDtag

  ^HR calibrateRFIDTag position

  ^RS SettingsRFIDargument

  ^RW read-writeRFPower level

  RFIDCoded print example

  Example 1: ReadGen2 in-labelTAG EPCThe data is printed on the label






  Print effect

RFIDHow to print labels06

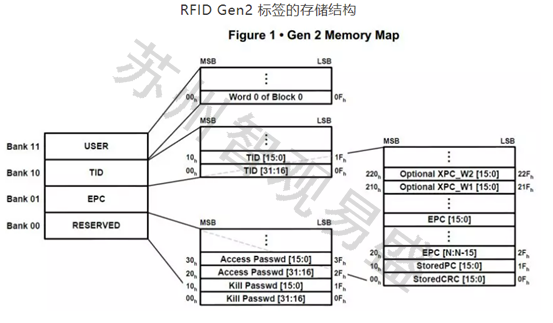

  Example 2: Read the extended Gen 2 tag ID (TID)

  The result is printed on the label and returned toRFIDprinter Host. Result for use "8-byte Tag ID Data" The header is marked.





  ^HV1,,8-byte Tag ID Data:^FS



RFIDHow to print labels07

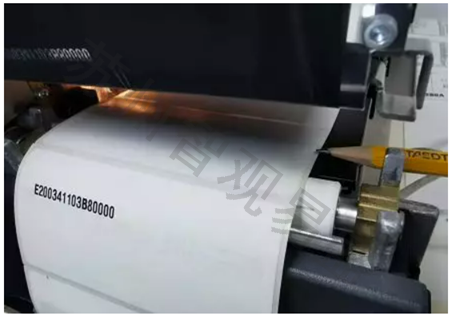

Printer output effect

RFIDHow to print labels08

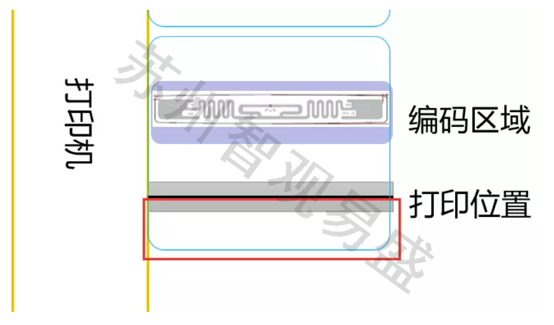

  When the label is encoded, if the label part already has more than a print head, the previous area in the red box cannot be printed, because the label will not be rolled back after encoding.

RFIDHow to print labels09

  moreRFIDFor products and solutions, please visit our website( )Or online customer service (13771886689) Consultation
